Used Cummins QSV81 Generator Set
- Stock Id:1473
- Condition:Good Used
- Year:2001
- Hours:7,393
- Rating(kW):1100 kW
- Voltage:480/277
- Status:Available
- Price: $159,000
Downloads
Description

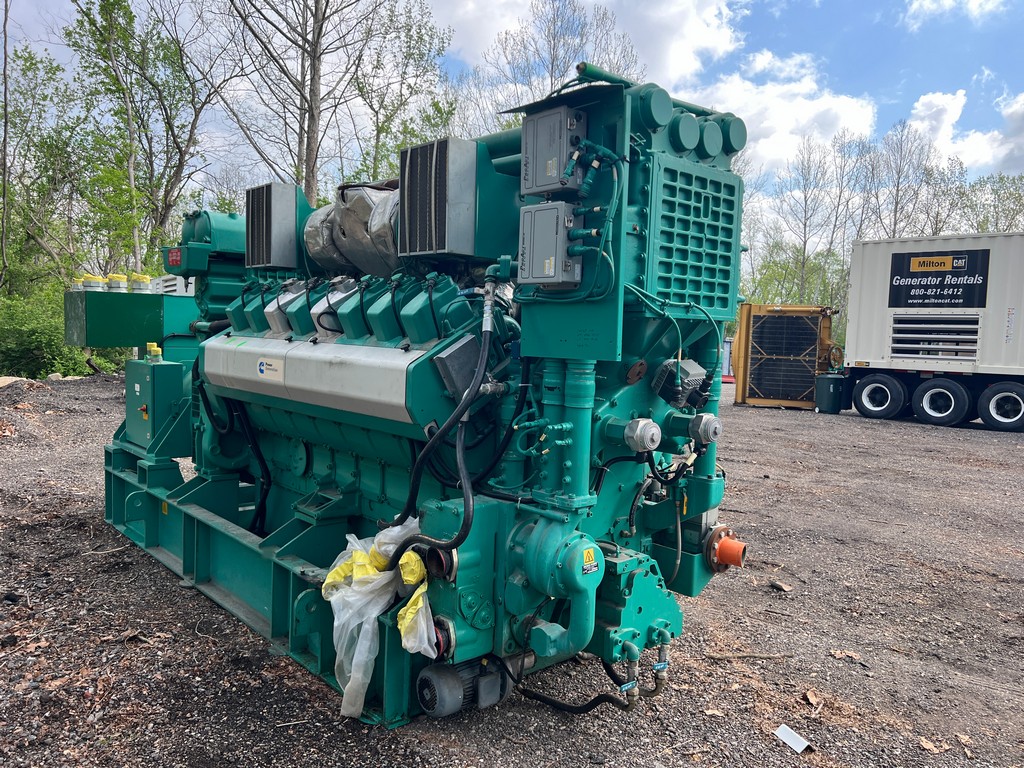

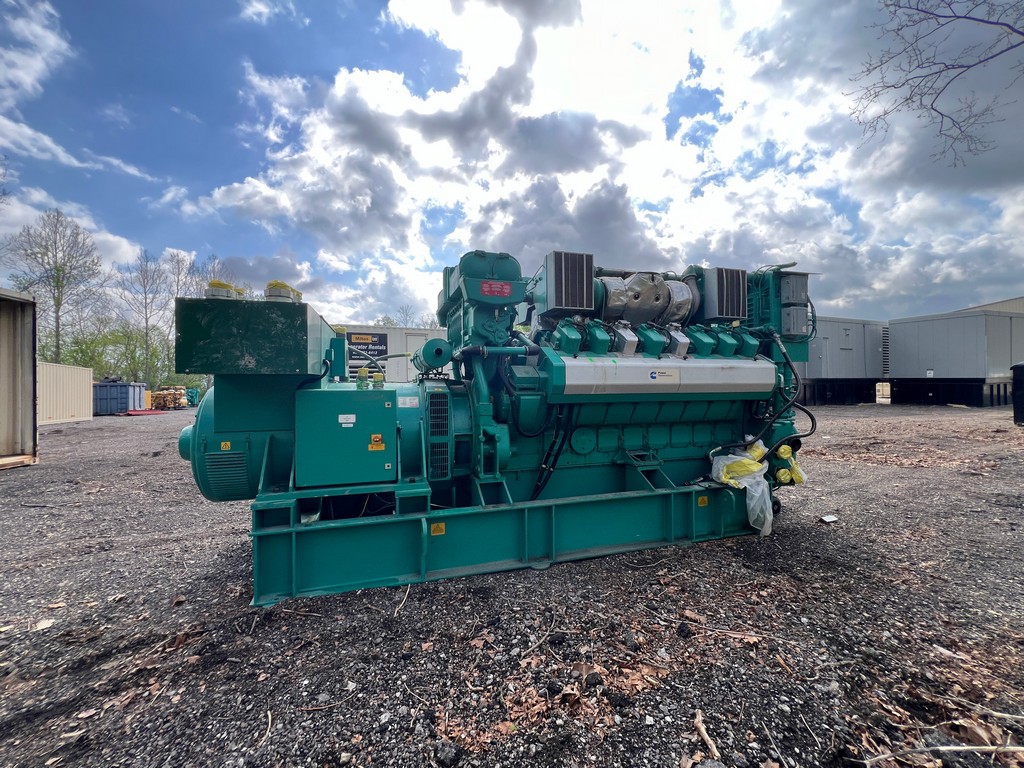

Used Cummins QSV81G Generator Set; 2001 Model – 7393 Original Hours; Wartsila CW-81-G Engine; 1100kW Prime Power; 480/277V; Open Skid Mount; Heavy Duty Air Cleaners; Ship Loose Control Box; No Radiator; In Stock – Immediately Available
Specifications
Generator Set:
- Manufacturer : Cummins
- Package Model : QSV81G

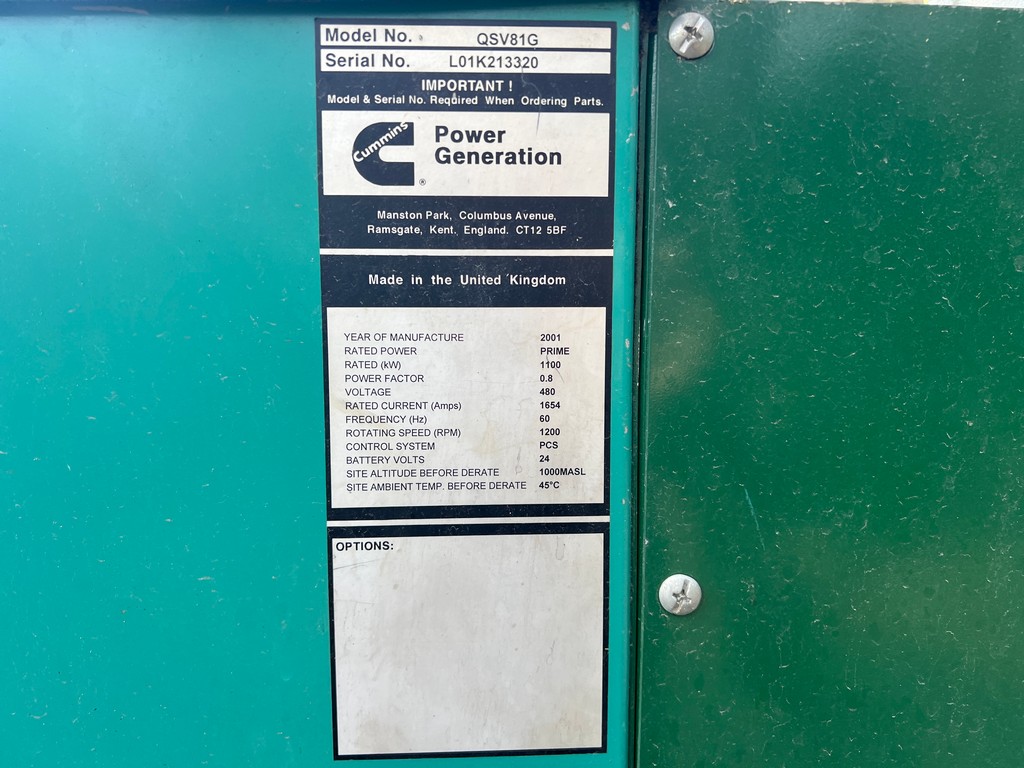

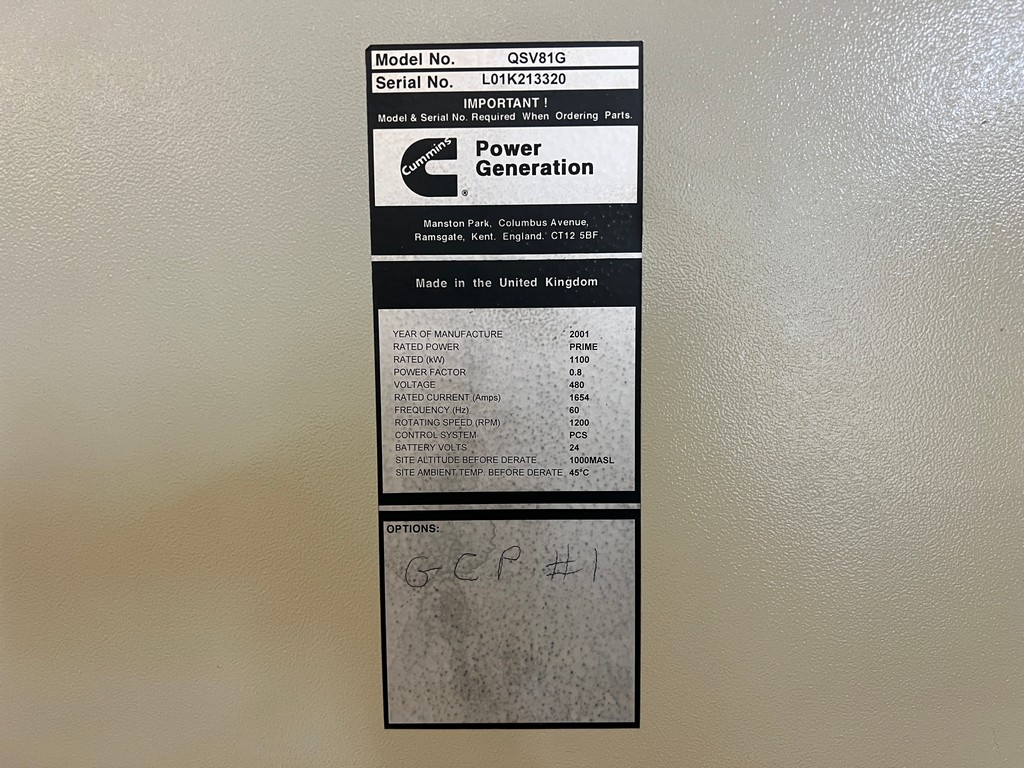

- Package S/N : L01K213320
- Control Panel : PowerCommand Supervisor
- Enclosure Type :
Features:
- Vibration Isolators

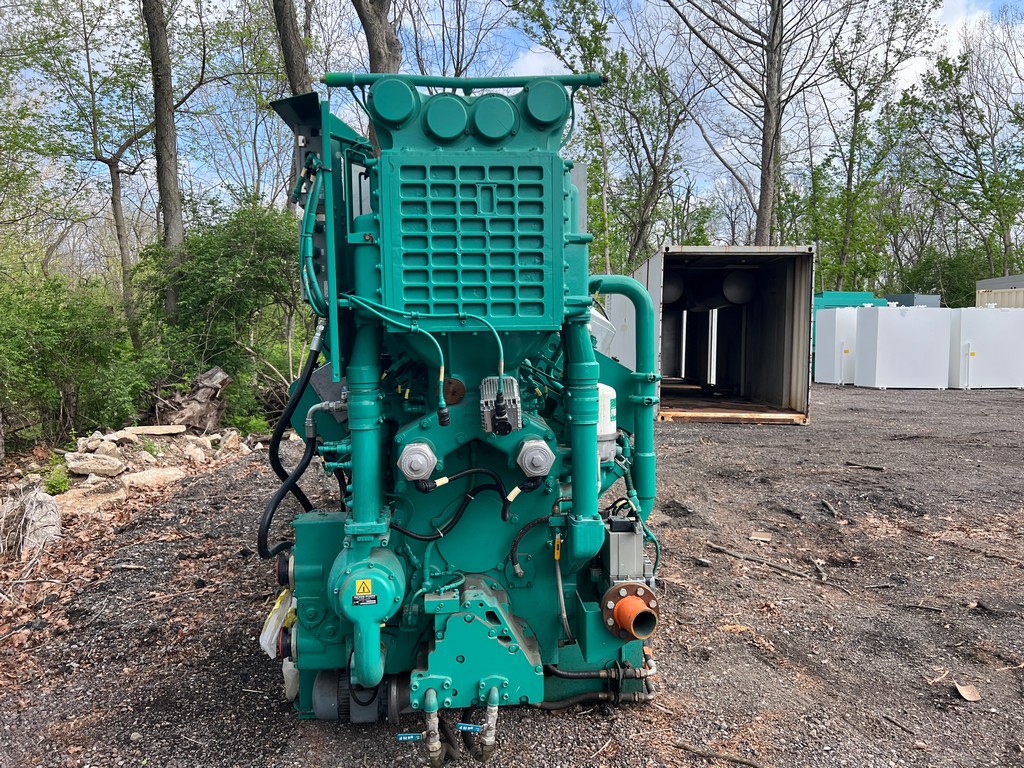

Engine:
- Manufacturer : Cummins / Wartsila
- Model : QSV81G / CW-81-G
- Rating (HP) : 1550 HP
- RPM : 1200
- Governor Type : Electronic
- Starter : Electric

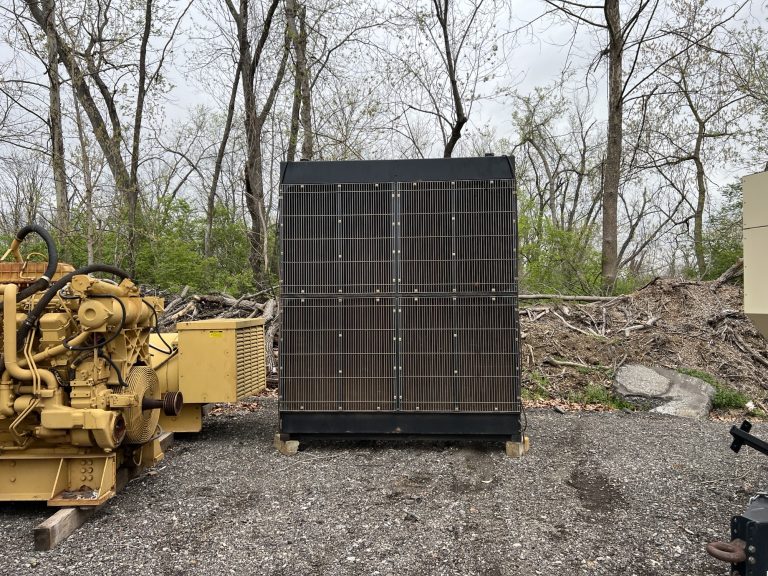

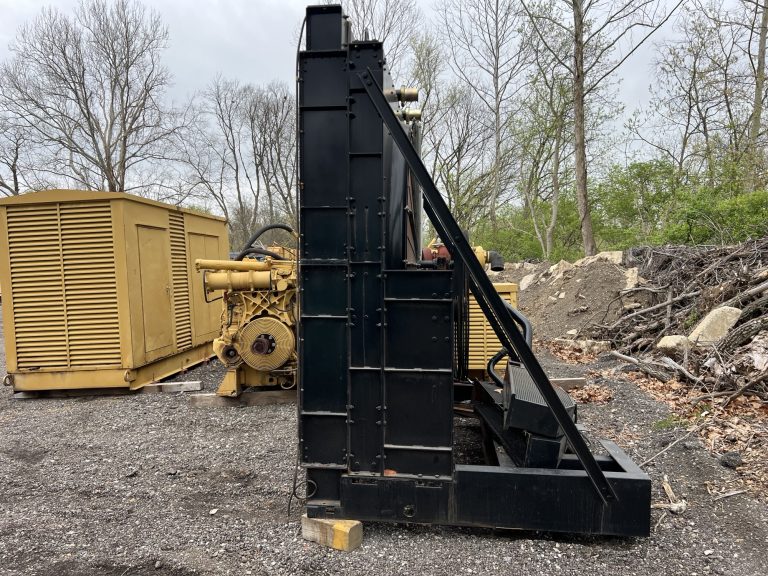

- Cooling Method : No Radiator
- Air Cleaner : Heavy Duty
- Compression Ratio : 12:1
Features:
- Electric Pre-Lube
- Emergency Stop
- Turbo Guards
- Manifold Guards
- Oil Level Regulator
- Explosion Relief Valve
- Gas Regulator

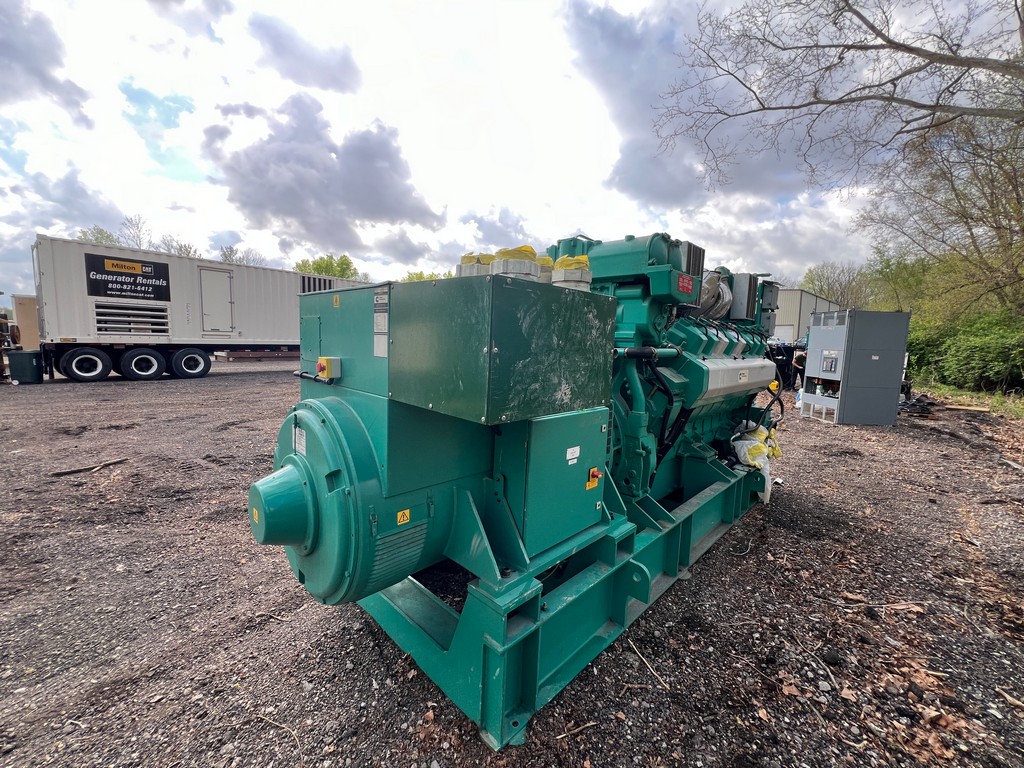

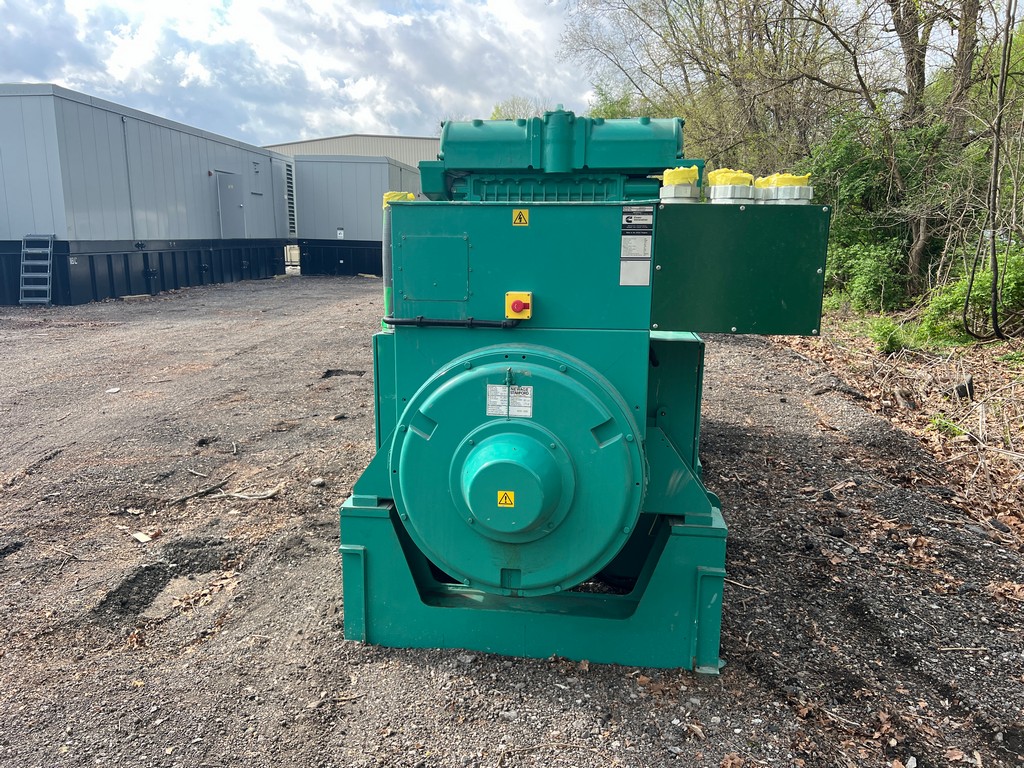

Generator End:
- Manufacturer : Stamford Newage
- Package Model : HCI 73662
- kW Rating : 1100 kW
- kVA Rating : 1375
- Rating Type : Prime
- Voltage : 480/277
- Power Factor : 0.8
- Frequency : 60 Hz
- Phase : Three Phase
Features:
- Double Bearing
- Flex Coupling
Additional Information
Oversized Generator End
1300kW / 1625kVA
Crankcase Vent Filter

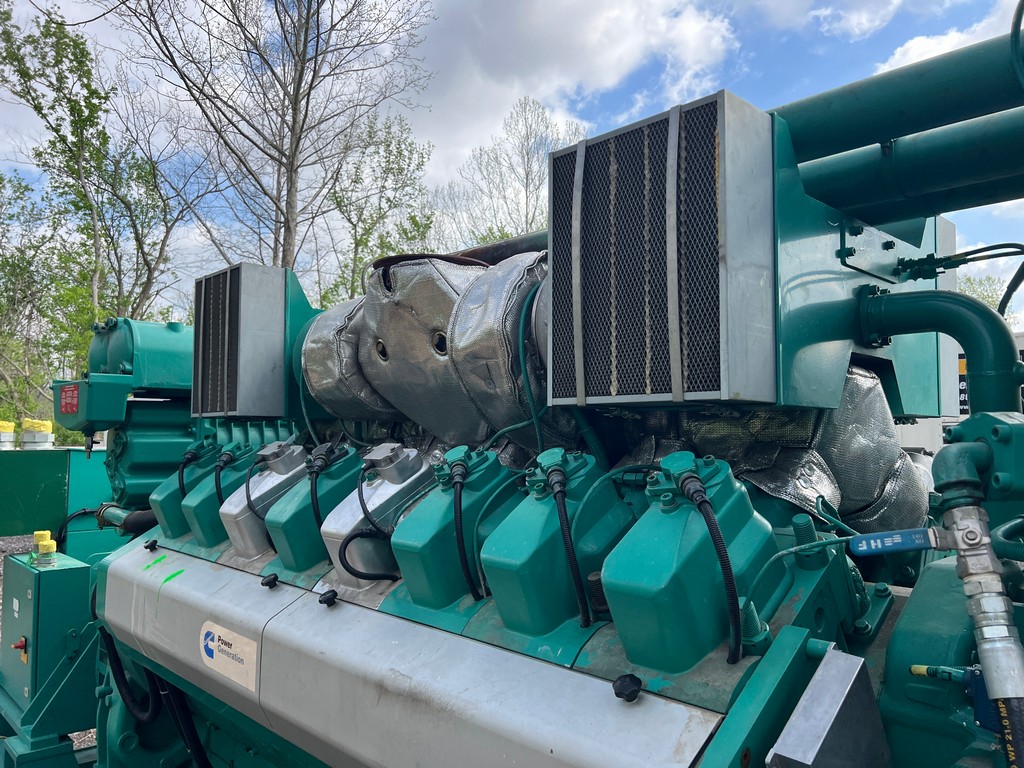

Water Cooled Turbo/Manifold

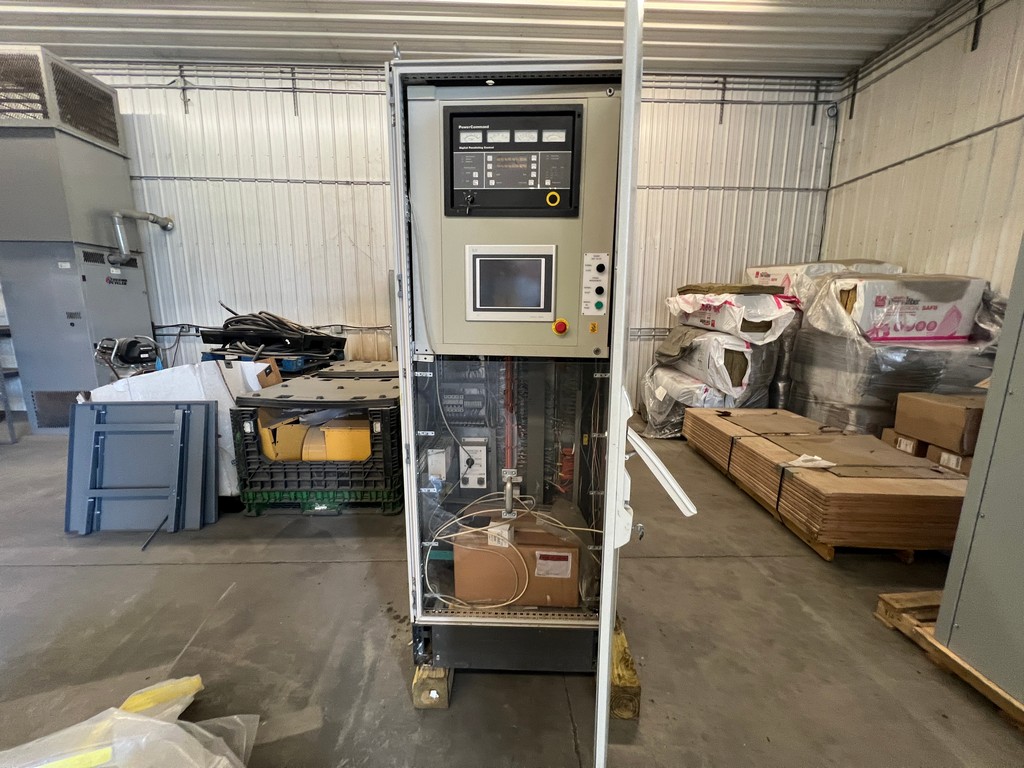

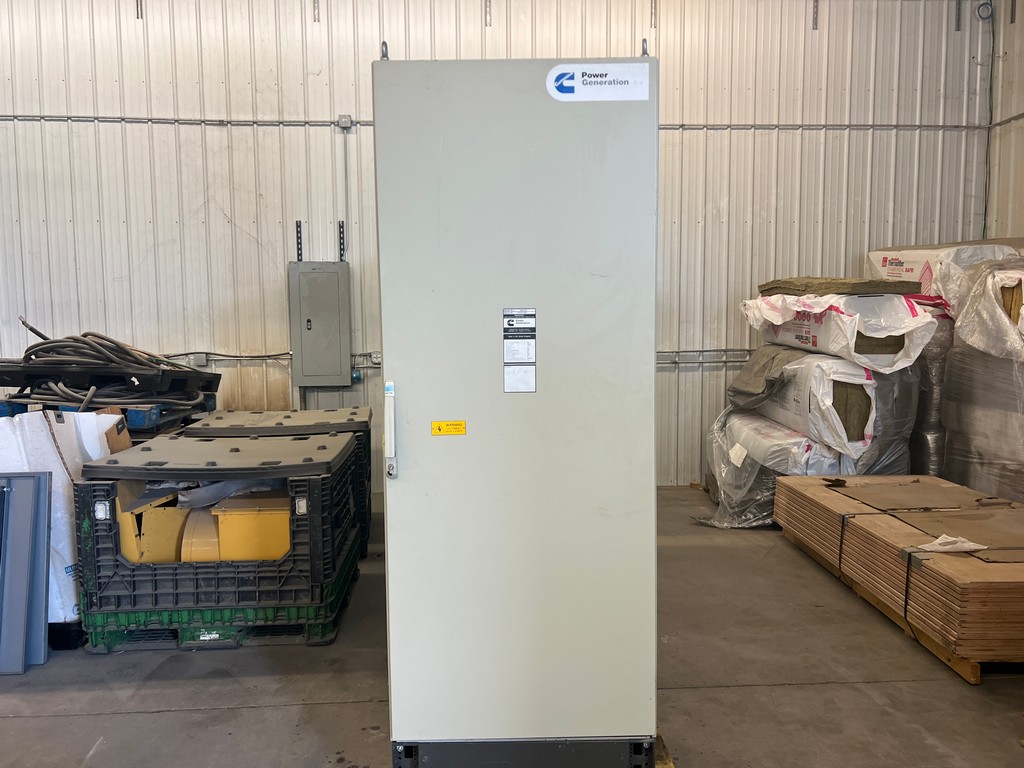

Freestanding Control Cabinet - Shipped Loose

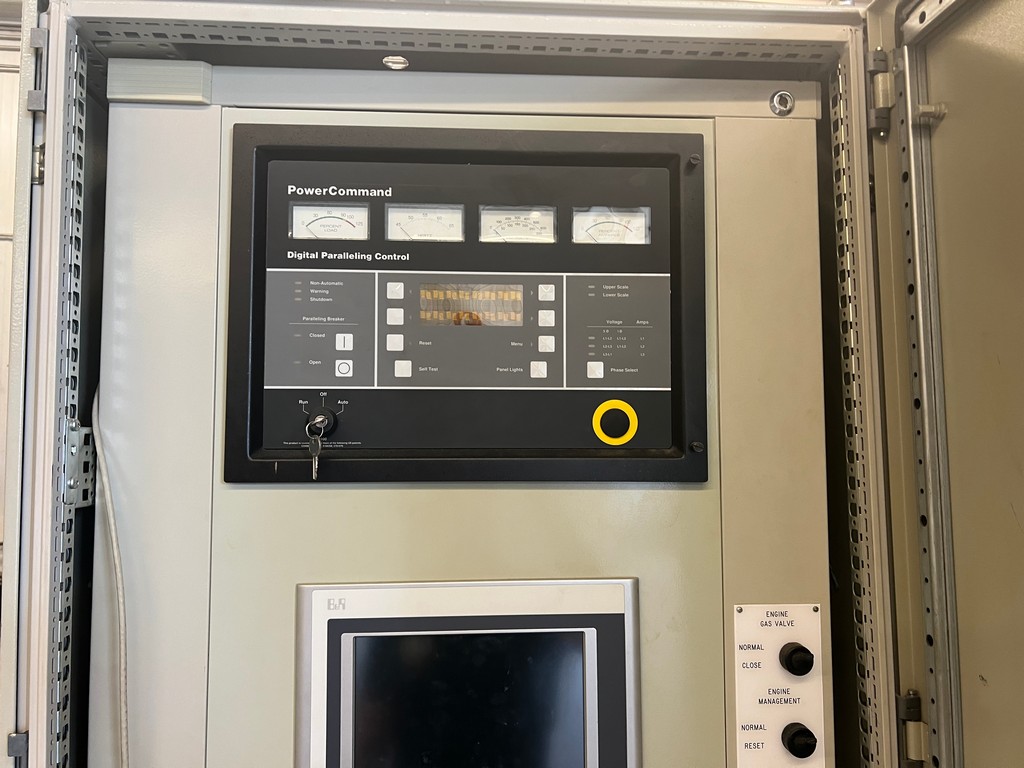

PowerCommand Supervisor Panel

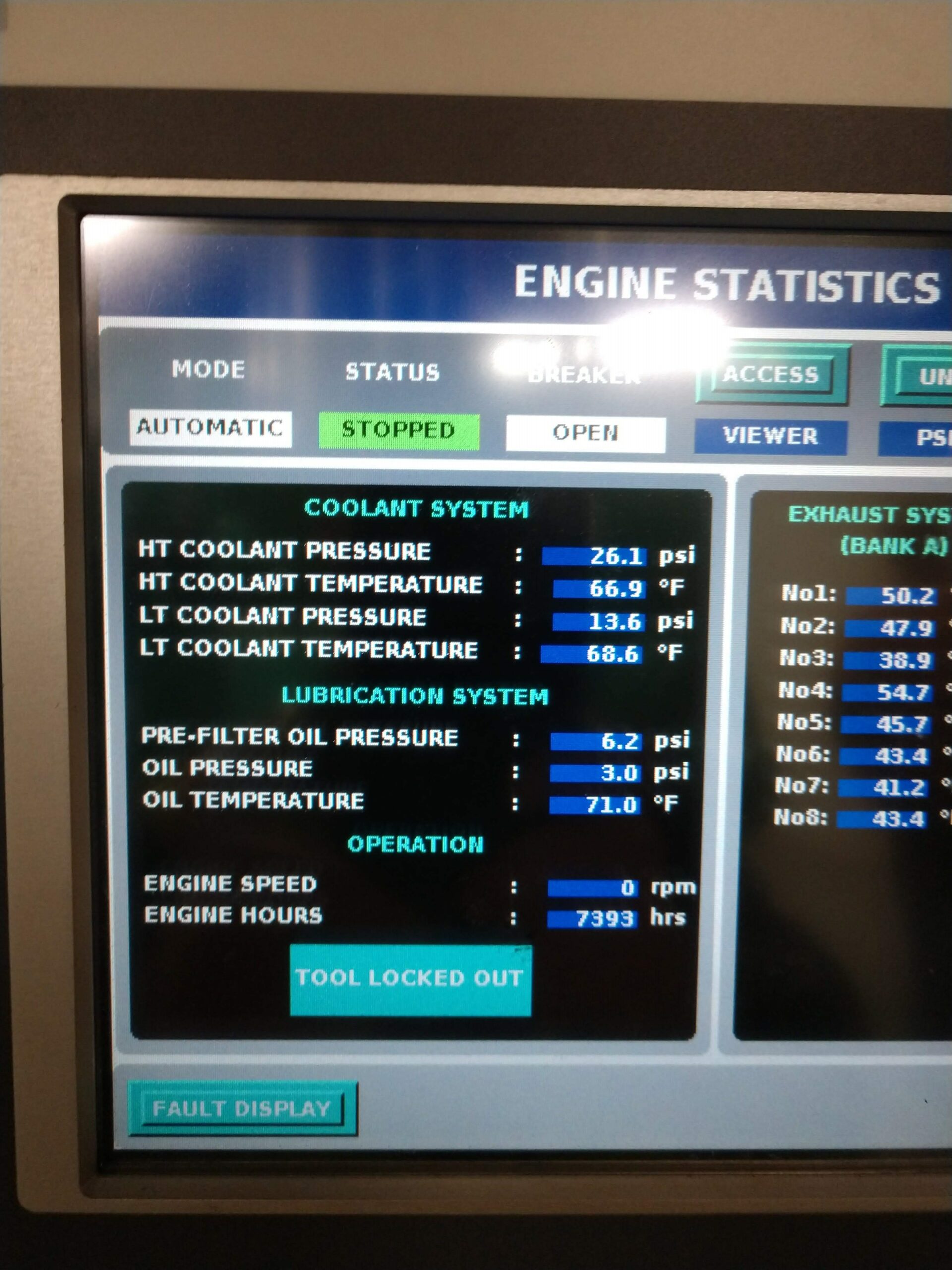

HMI Touchscreen Interface
Integrated Voltage Regulator
Shipping Information
L x W x H (Inches) : 211 x 68 x 105
Weight (Lbs) : 36000
