Low Hour Used CAT 3516B High Voltage Generator Set; 2005 Model – Low Hours; Like New Condition; 2000kW Standby Rated; 12,470V (Adjustable to 13,200 & 13,800); Open Skid Mounted; EMCP 3.3 Controller; Battery Charger; Jacket Water Heater; Netural Grounding Resistor; Two Available – January 2024 Removal Date.
Specifications
Generator Set:
Manufacturer : Caterpillar
Package Model : 3516B
Control Panel : EMCP 3.3
Features:
Engine:
Manufacturer : Caterpillar
Model : 3516B
Serial Number : GZS
Arrangement/CPL : 2603688
Emissions Rating : Tier 1
Governor Type : ADEM
Starter : Electric
Cooling Method : Engine Driven Radiator
Air Cleaner : Heavy Duty
Features:
Jacket Water Heater

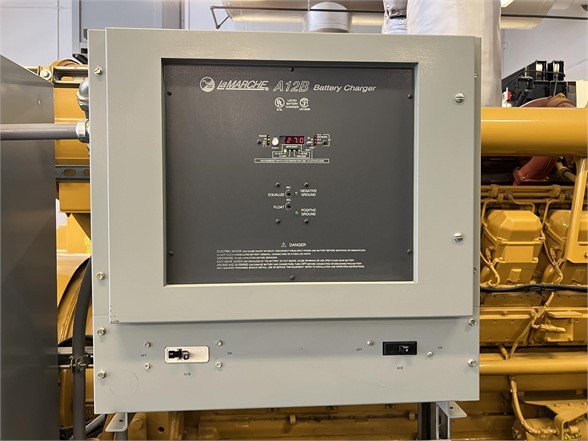

Battery Charger
Charging Alternator

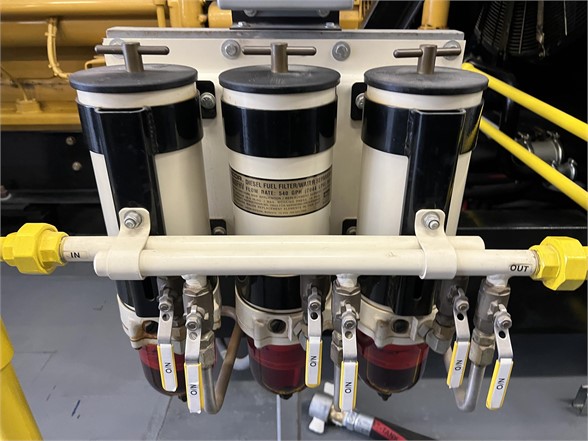

Fuel Water Separator
Fuel Cooler
Battery Rack
Battery Cables
Emergency Stop
Coolant Level Sensor
Generator End:
Manufacturer : Caterpillar
Package Model : SR4B HV
Arrangement : 2114892
kW Rating : 2000 kW
kVA Rating : 2500
Rating Type : Standby
Voltage : 12,470
Power Factor : 0.8
Frequency : 60 Hz
Phase : Three Phase
Features:
Brushless
Random Wound
Additional Information
Two Units Available Removal Date - January 2024 Voltage Adjustable to 13,200 & 13,800 Neutral Grounding Resistor Control Panel - Shipped Loose w. Harness
