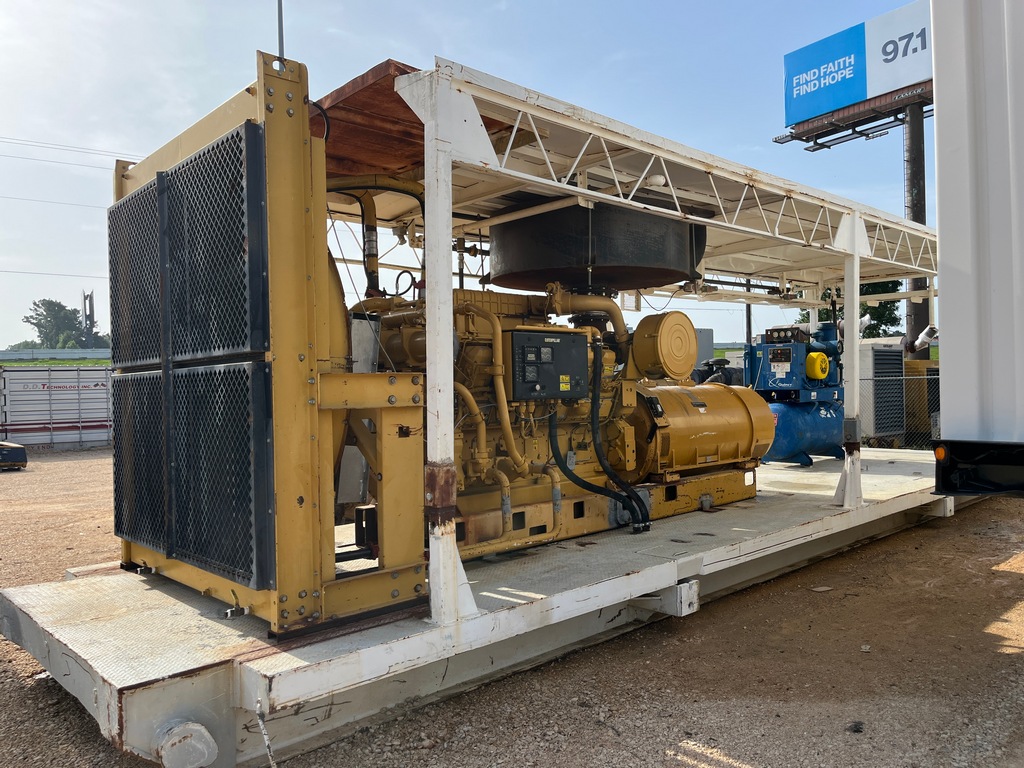

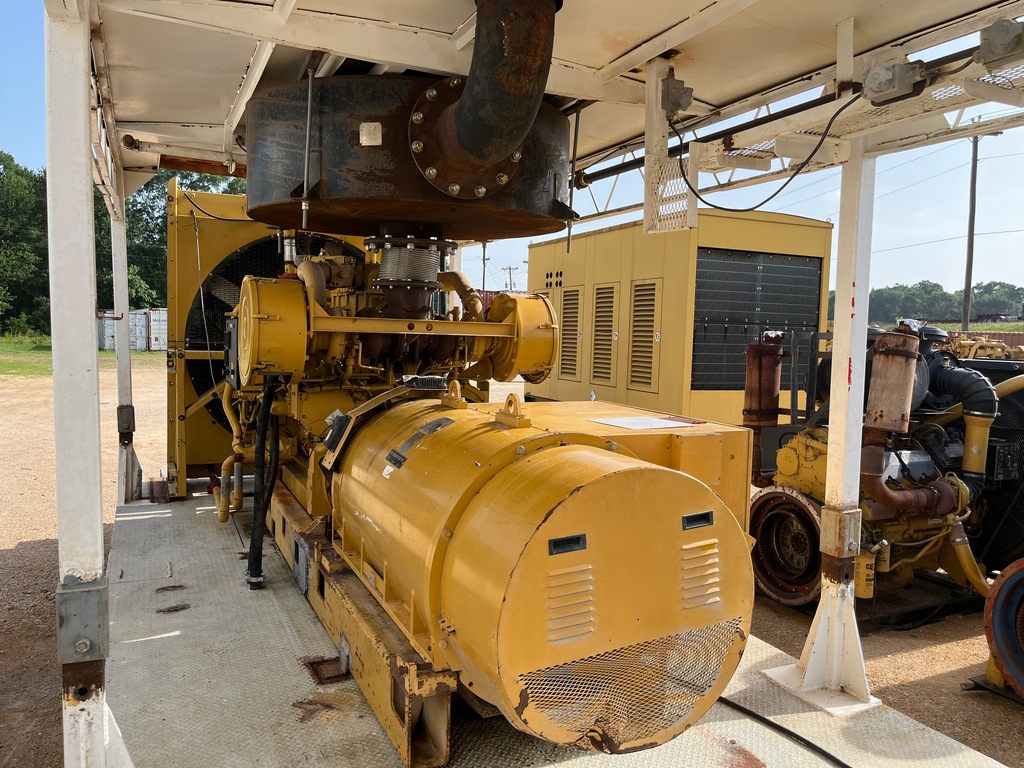

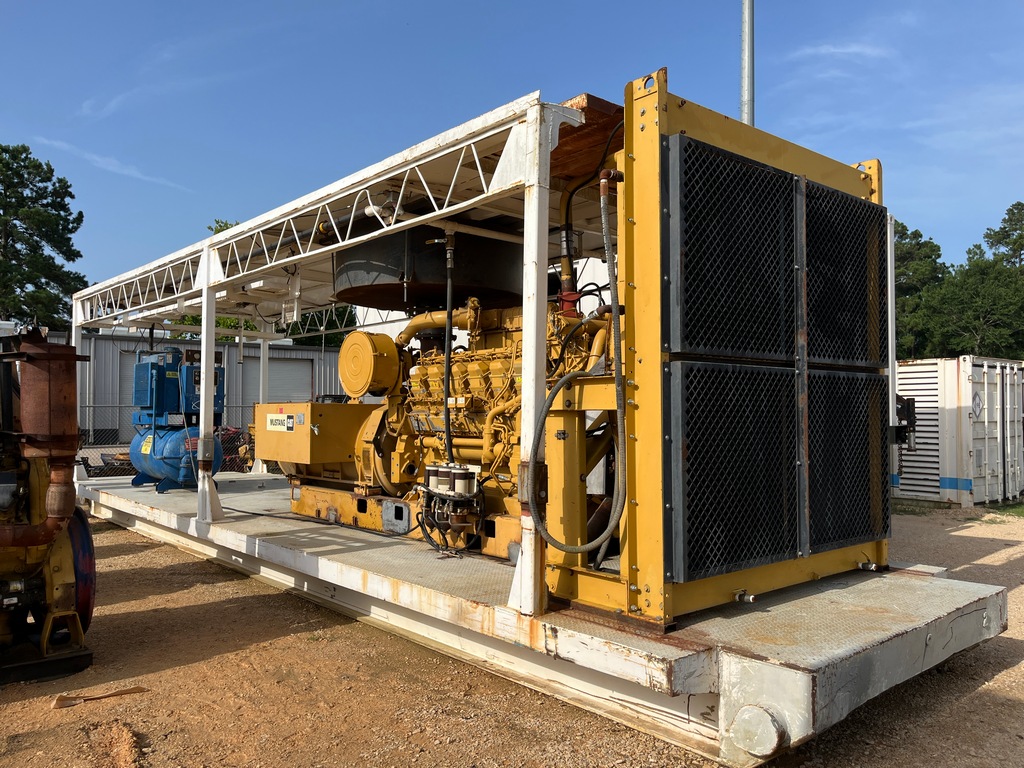

Used CAT 3512C Land Electric Generator Set; 2014 Model – 26,281 Original Hours; Tier 2 Emissions; Kato 6P6-3300 Generator End; 600V; Heavy Duty Skid; Engine Driven Radiator; Oilfield Ready; 1101kW Prime Power; Well Maintained; Cleaned; Serviced; Load Tested
Specifications
Generator Set:
Manufacturer : Caterpillar
Package Model : 3512C
Enclosure Type : Open Skid Mounted, Heavy Duty Skid
Features:

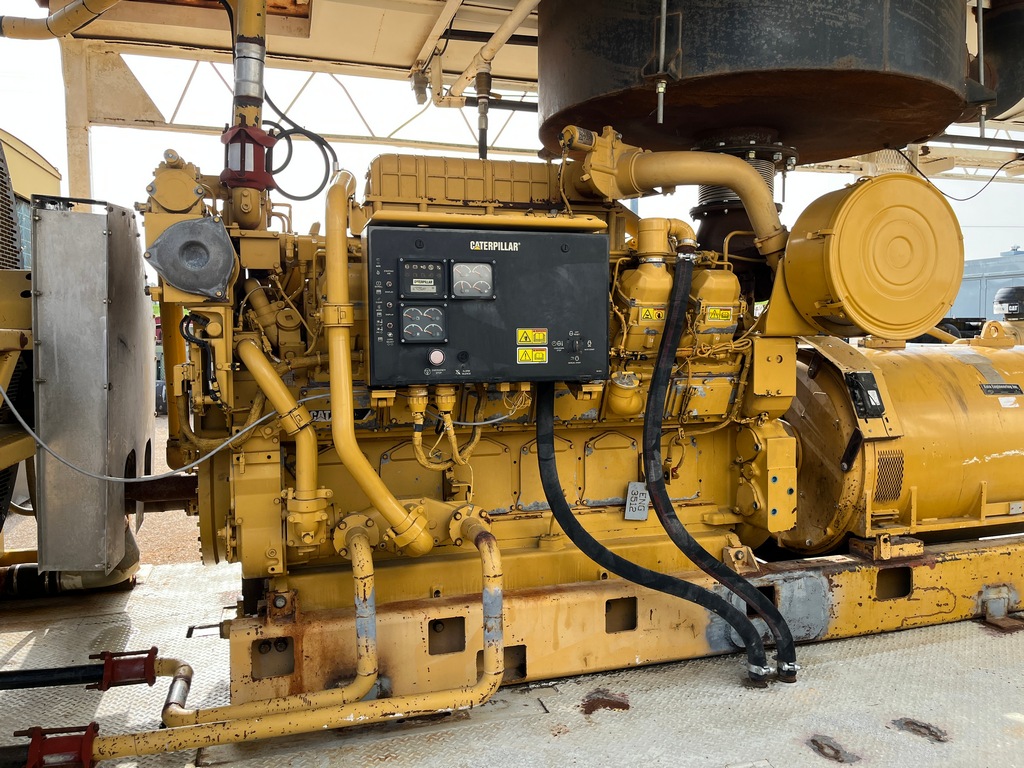

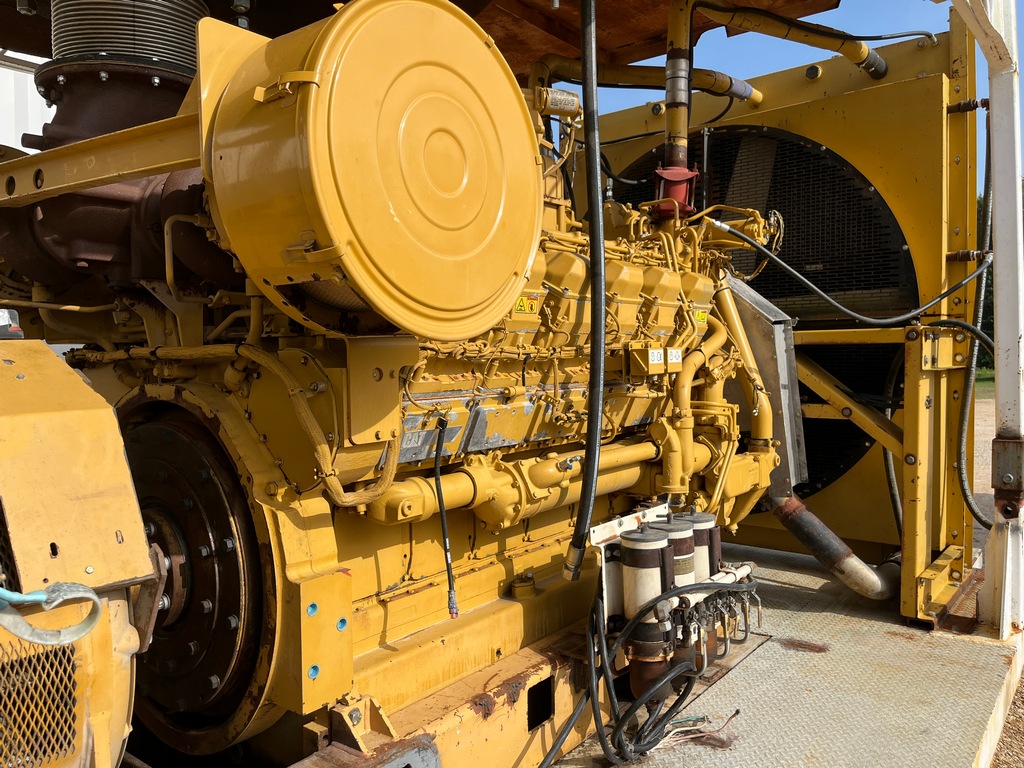

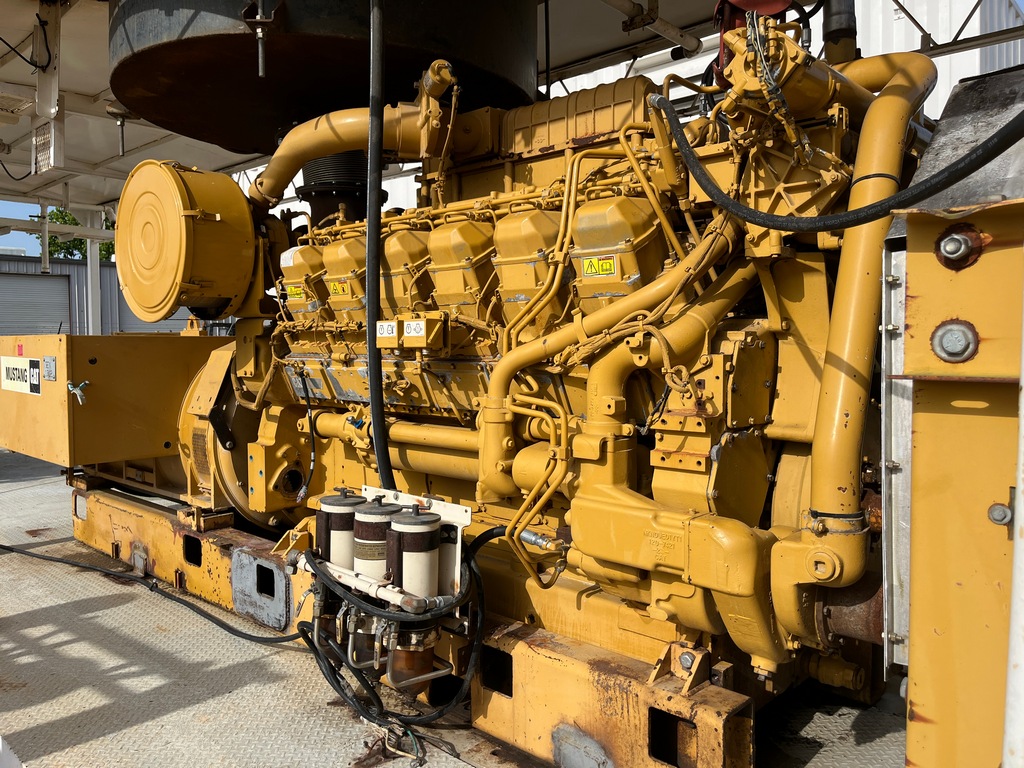

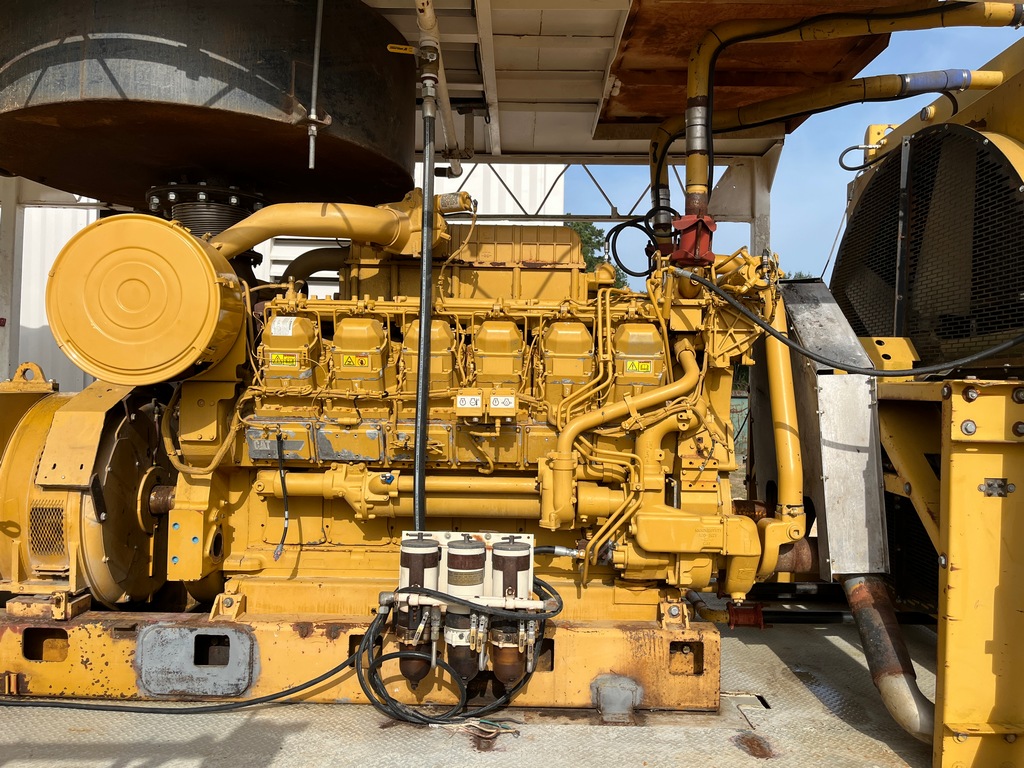

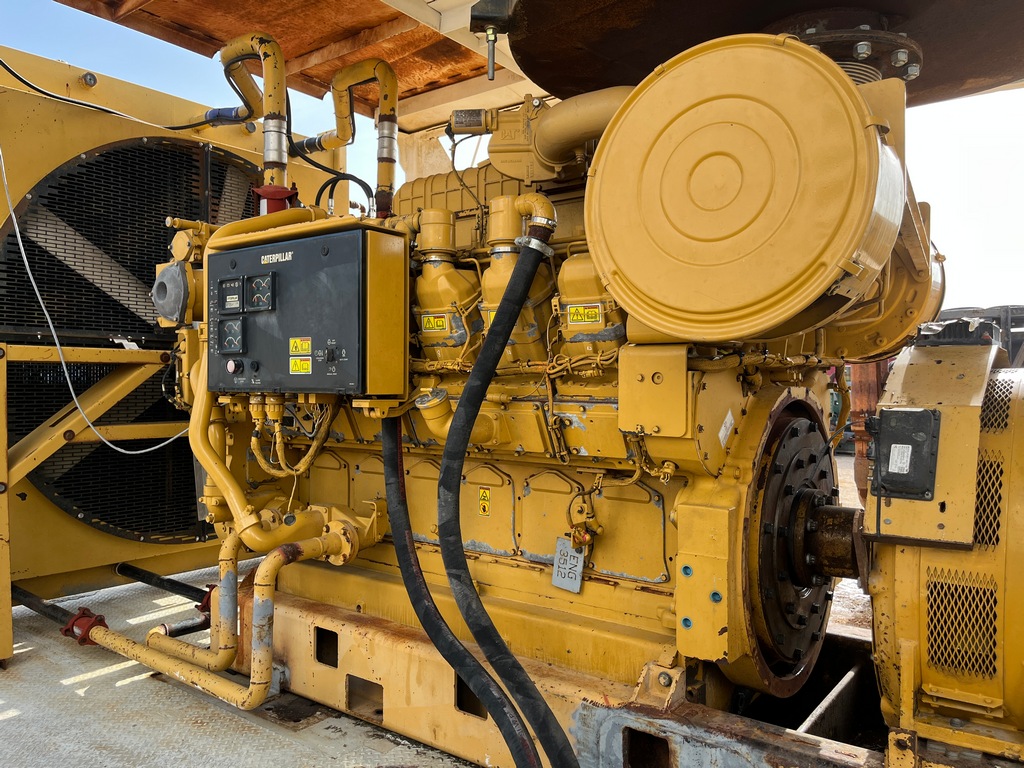

Engine:
Manufacturer : Caterpillar
Model : 3512C

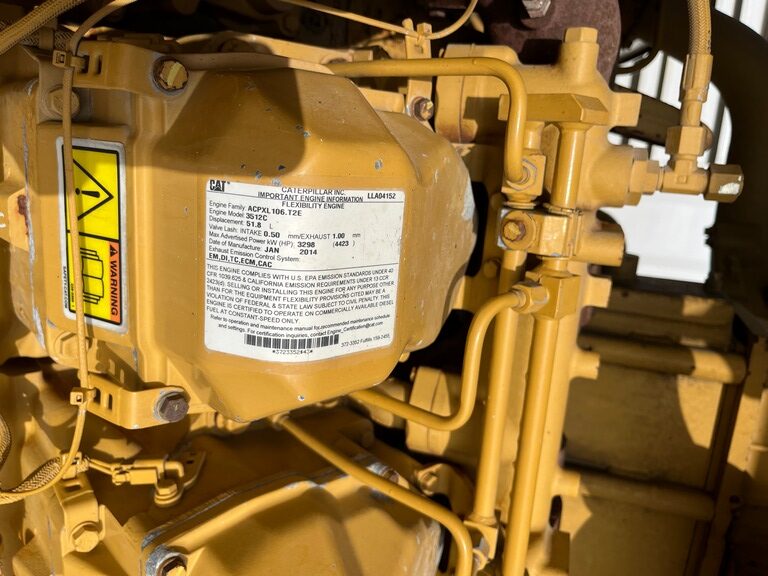

Serial Number : LLA04152
Rating (HP) : 1476 HP
RPM : 1200
Emissions Rating : Tier 2
Governor Type : ADEM
Starter : Air

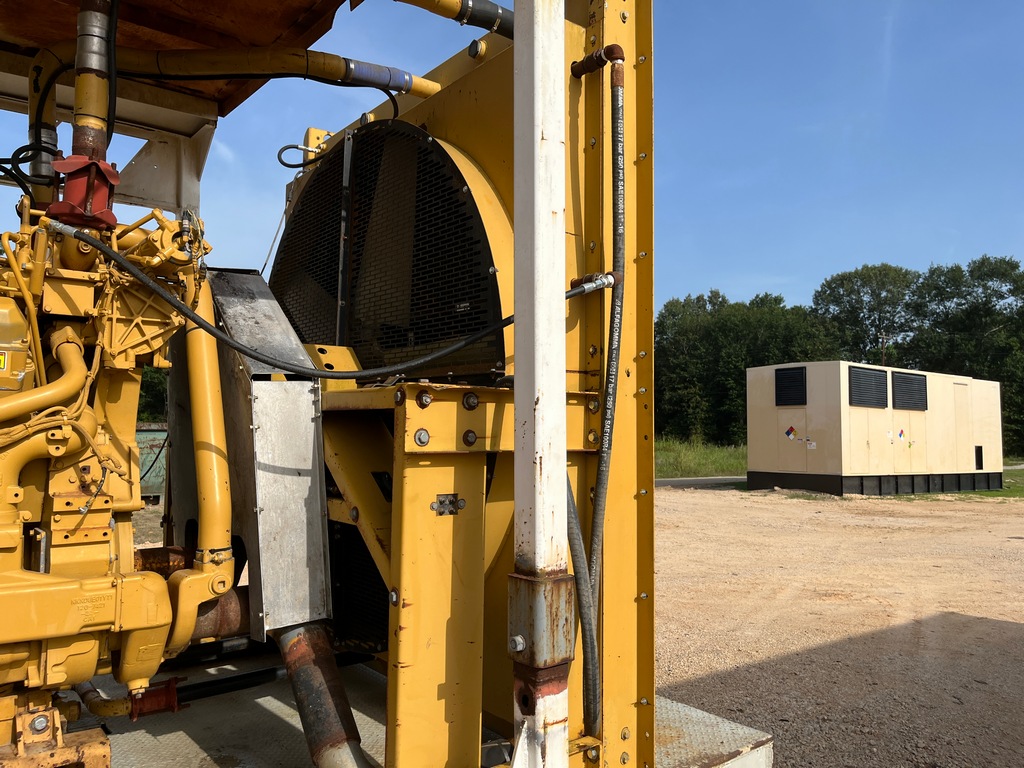

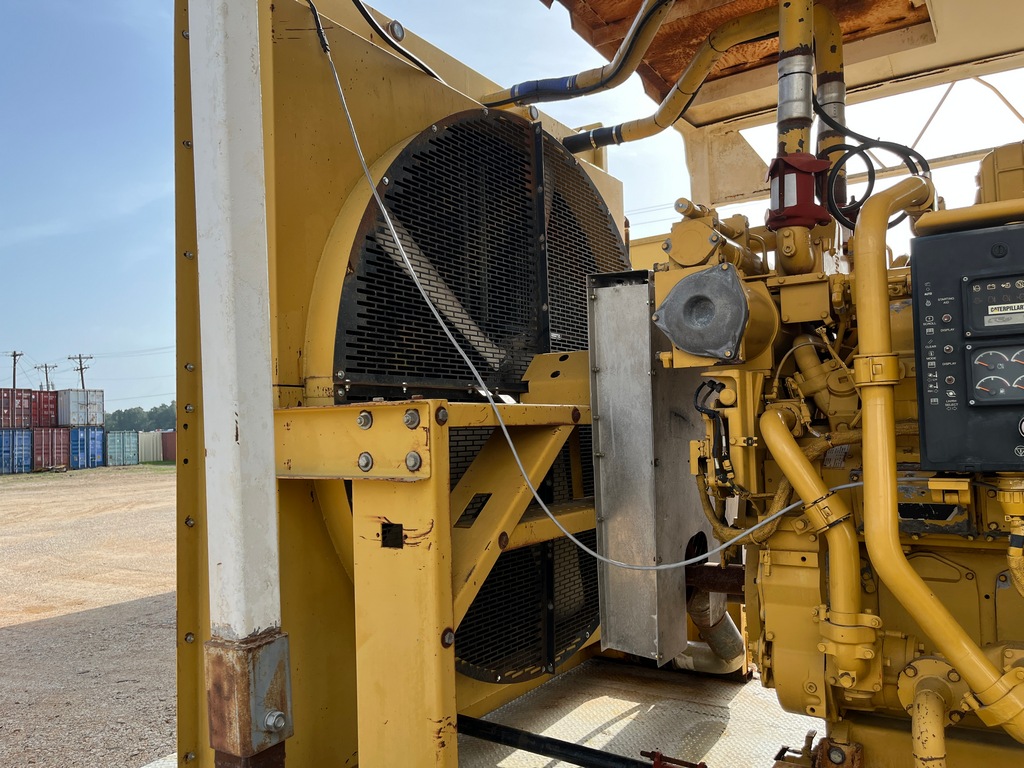

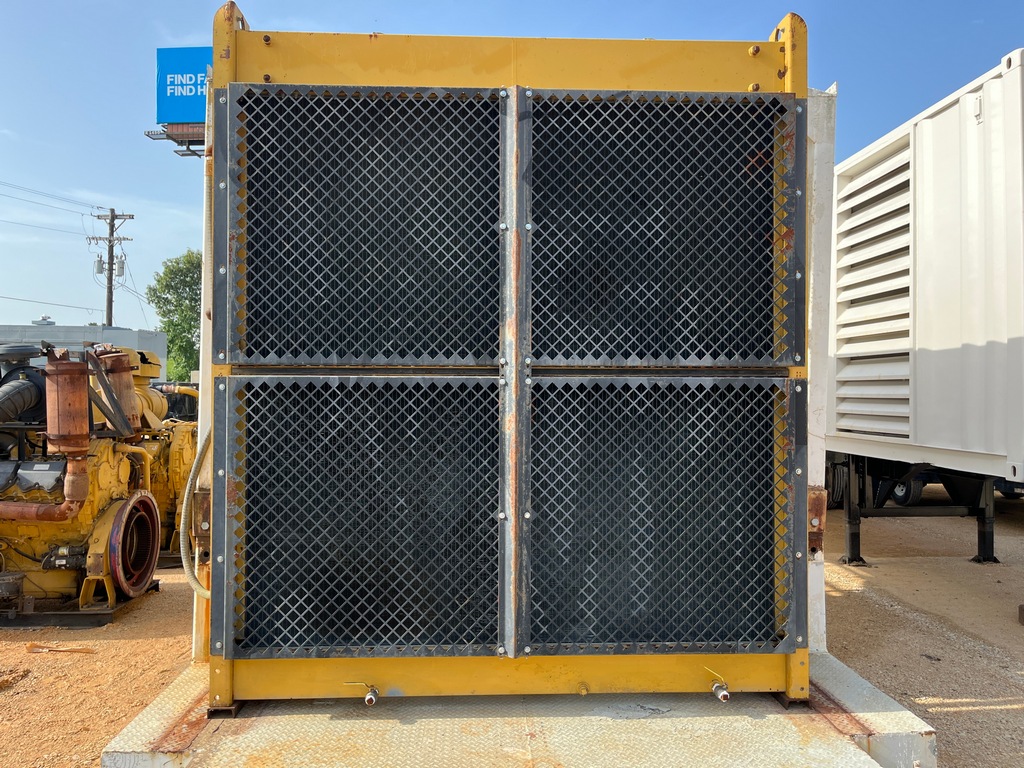

Cooling Method : Engine Driven Radiator
Air Cleaner : Heavy Duty
Features:

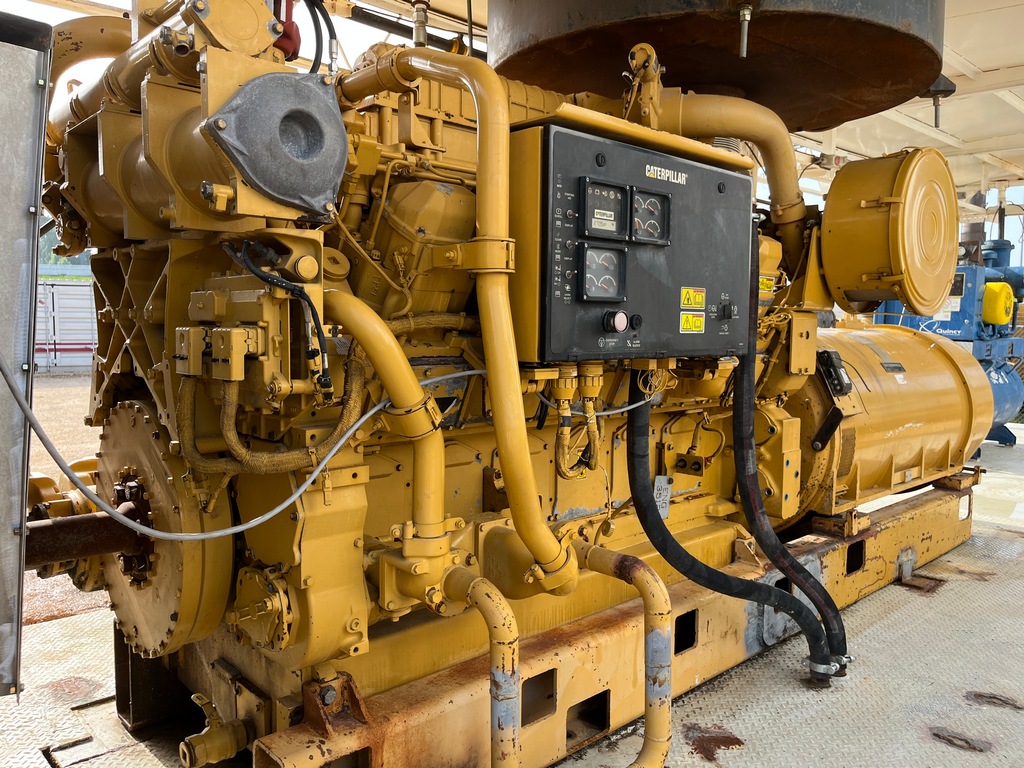

Mounted Instrument Panel
Charging Alternator
Fuel Water Separator
Fuel Cooler
Emergency Stop
Coolant Level Sensor
Air Inlet Shutoff

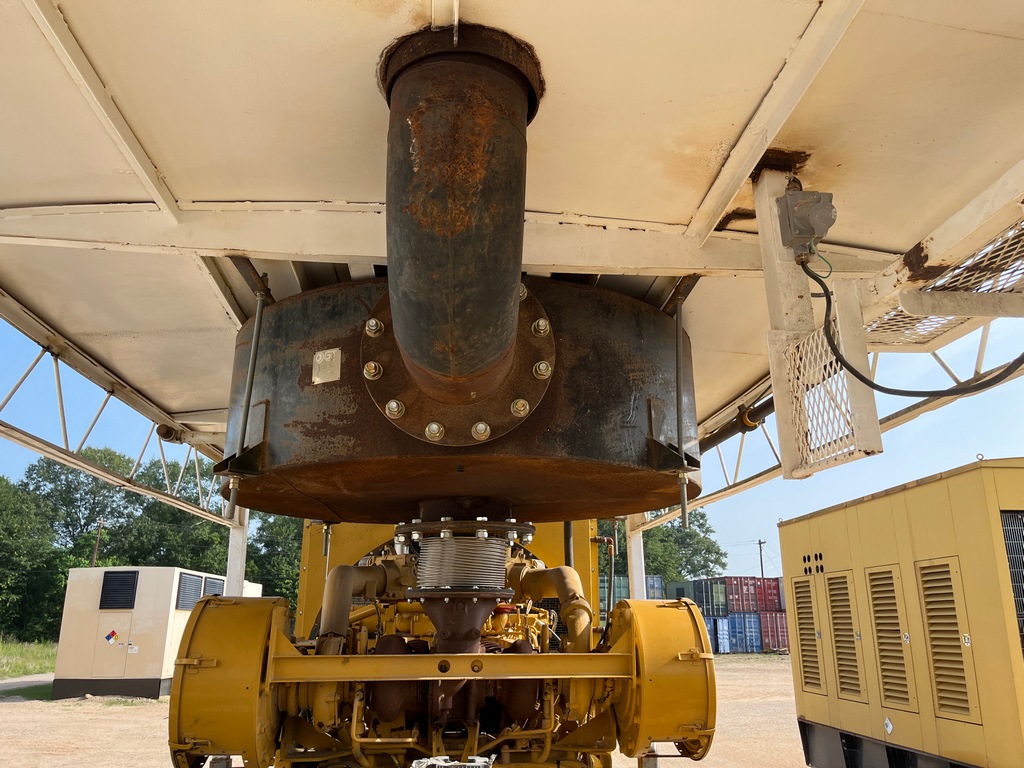

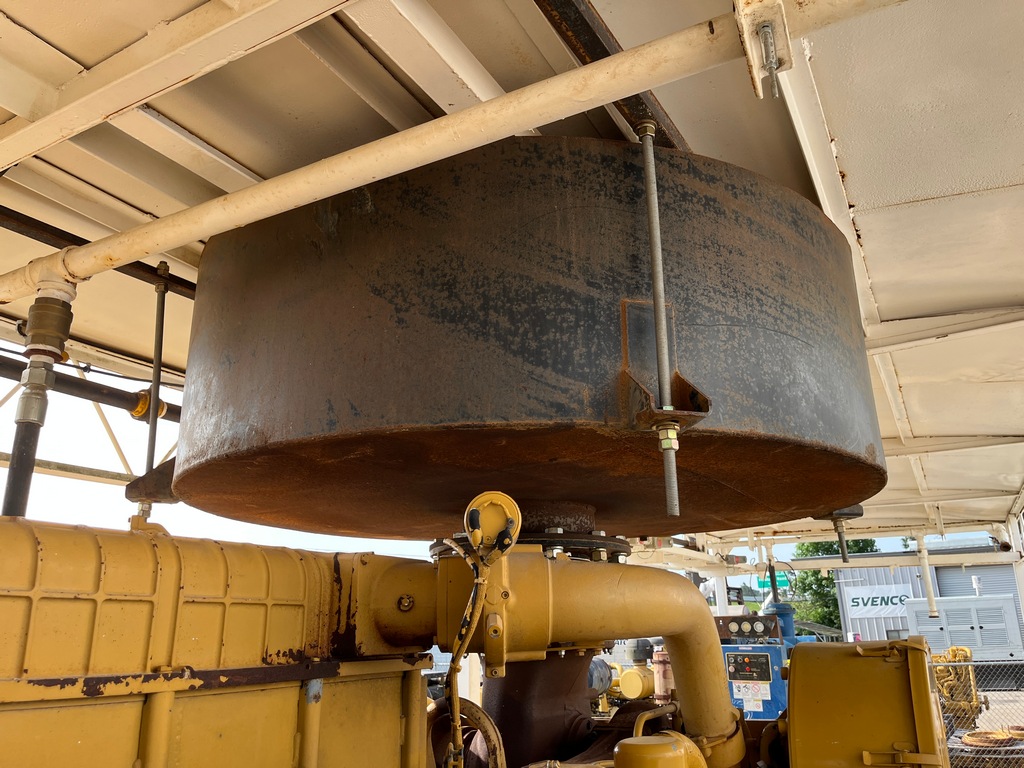

Exhaust Silencer - Mounted

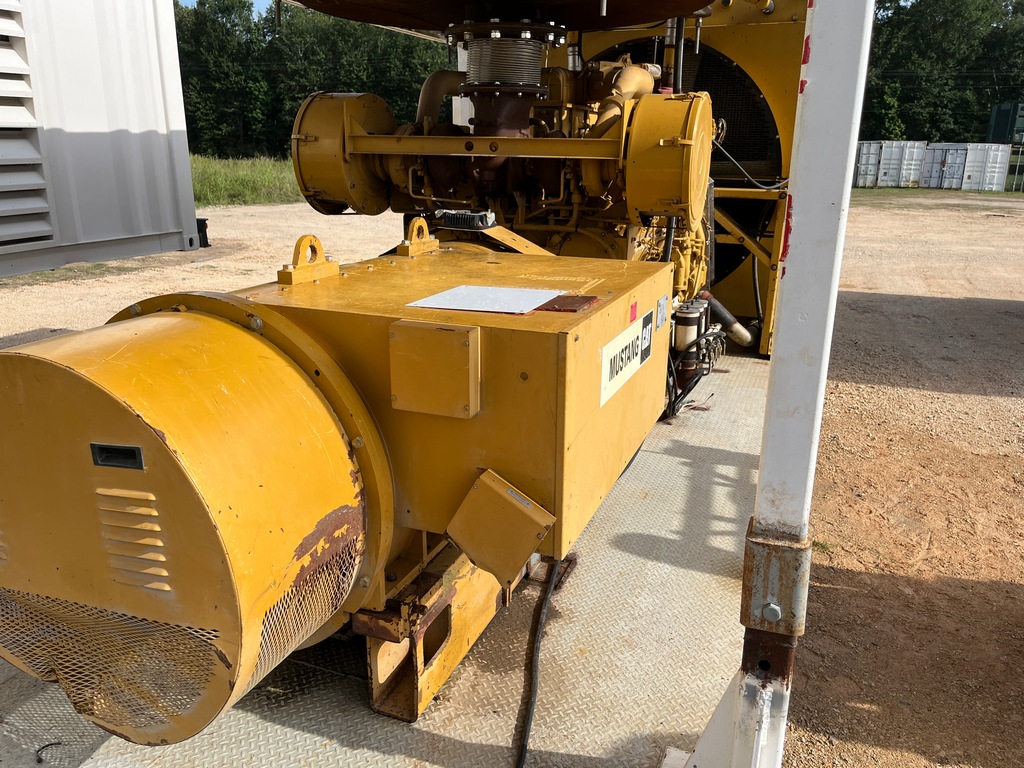

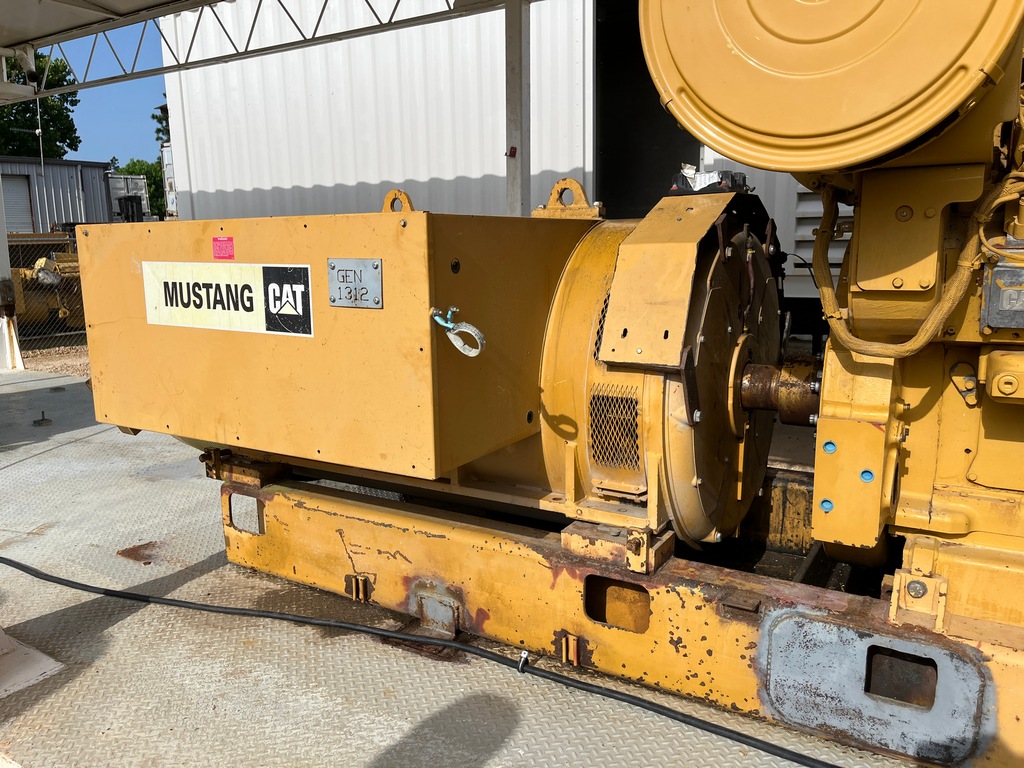

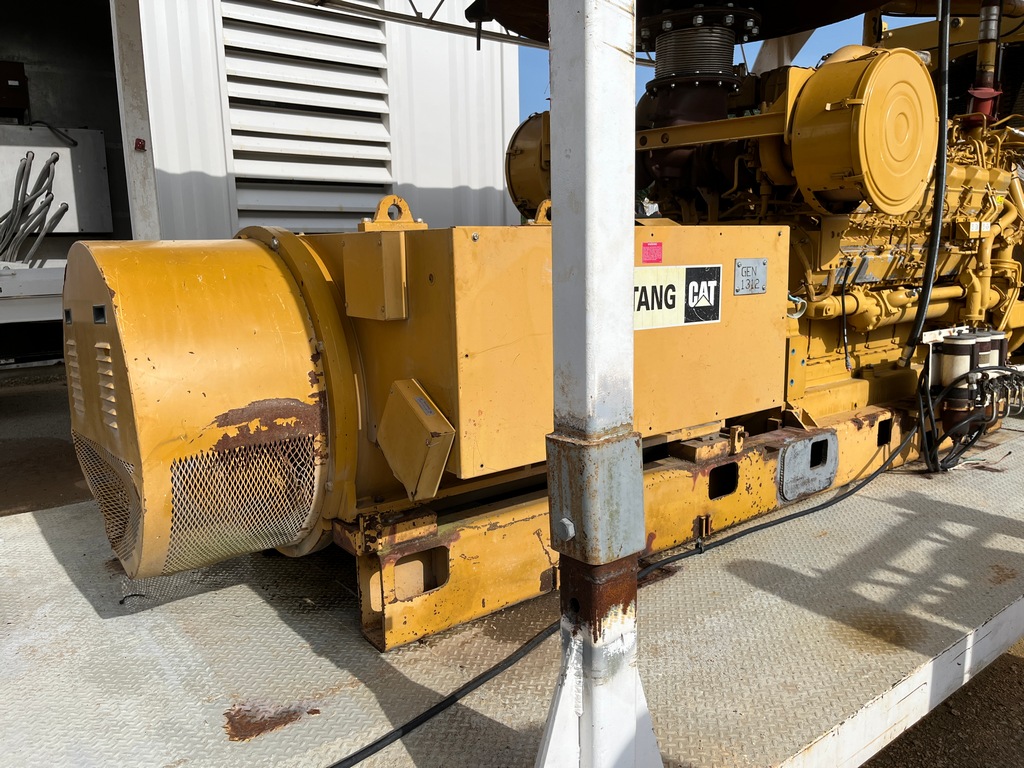

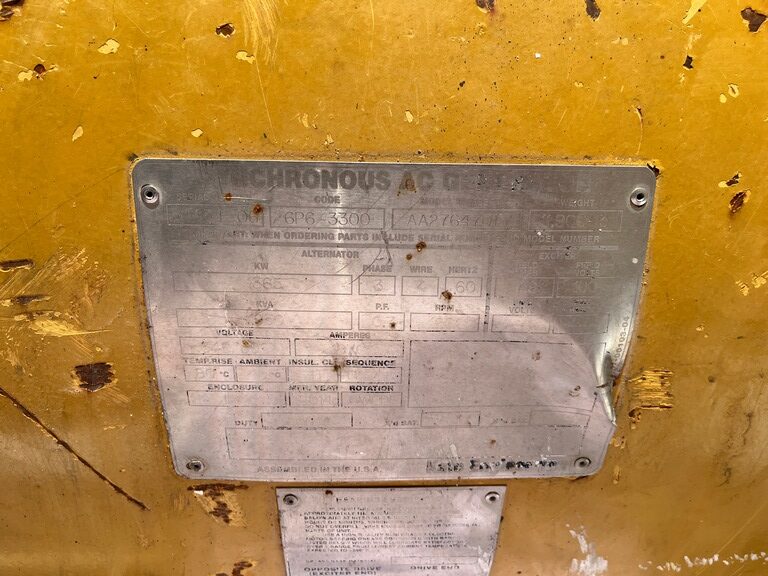

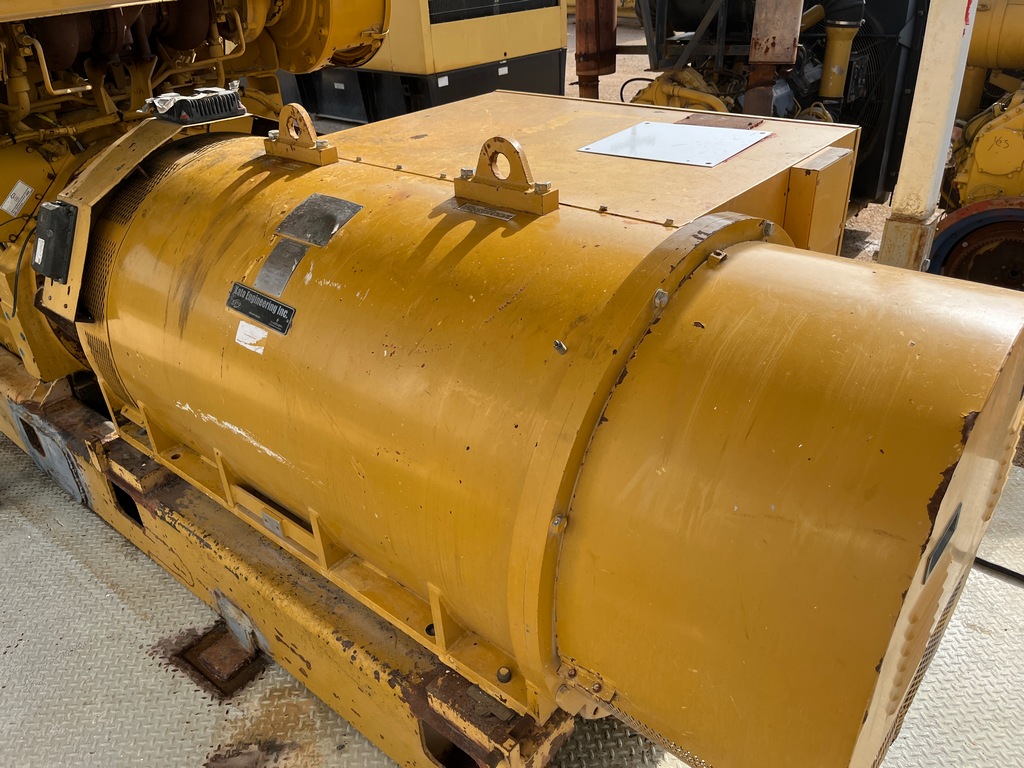

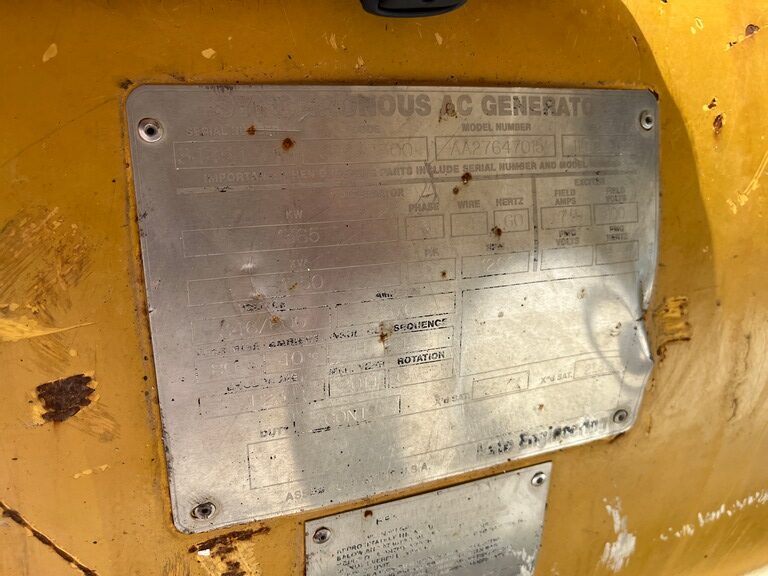

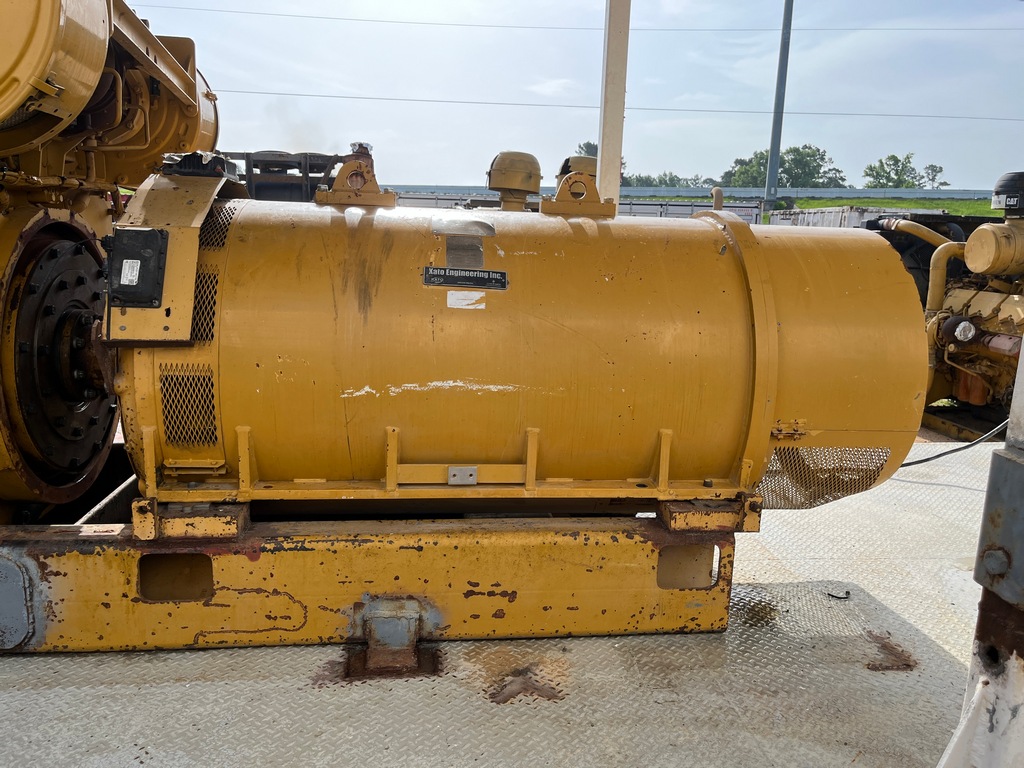

Generator End:
Manufacturer : Kato
Package Model : 6P6-3300
kW Rating : 1365 kW
kVA Rating : 1950
Rating Type : Continuous
Voltage : 346/600
Power Factor : 0.7
Frequency : 60 Hz
Phase : Three Phase
Features:
Double Bearing
Permanent Magnet Excitation
Form Wound
Bearing Temp RTDs
Flex Coupling
Additional Information

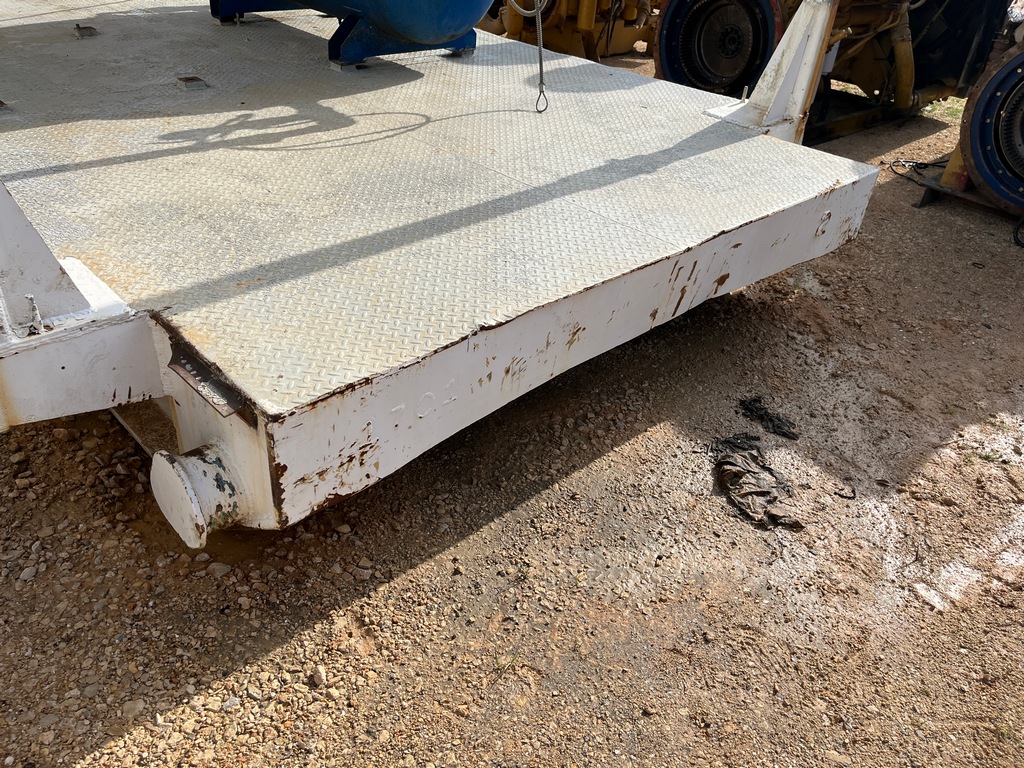

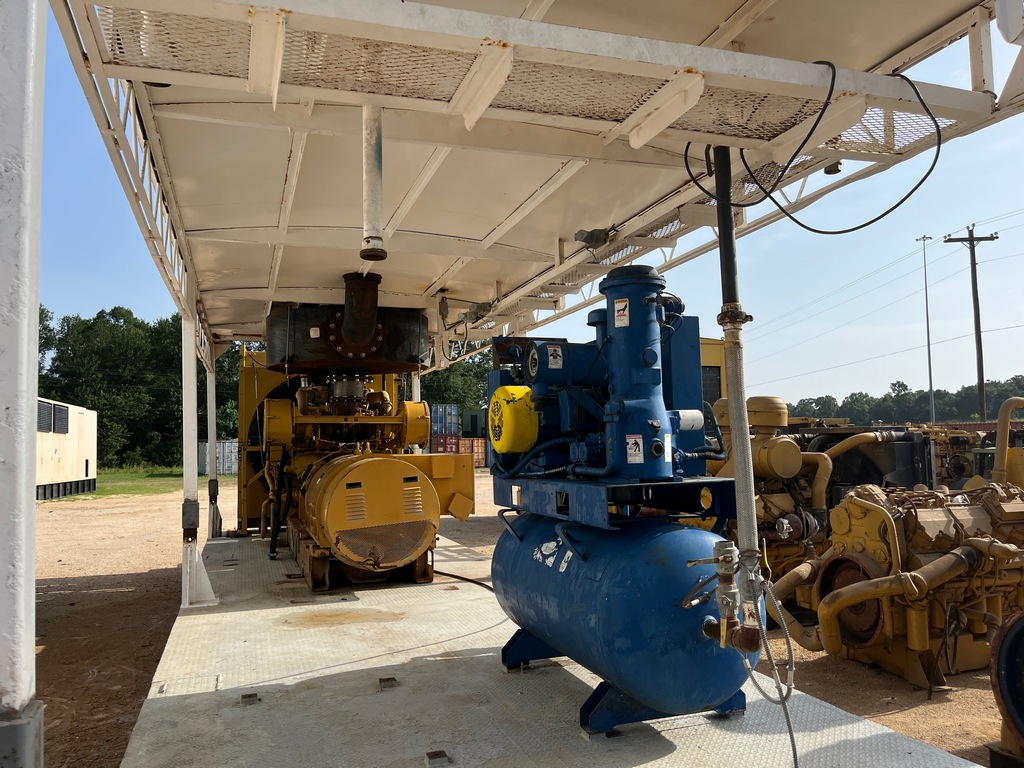

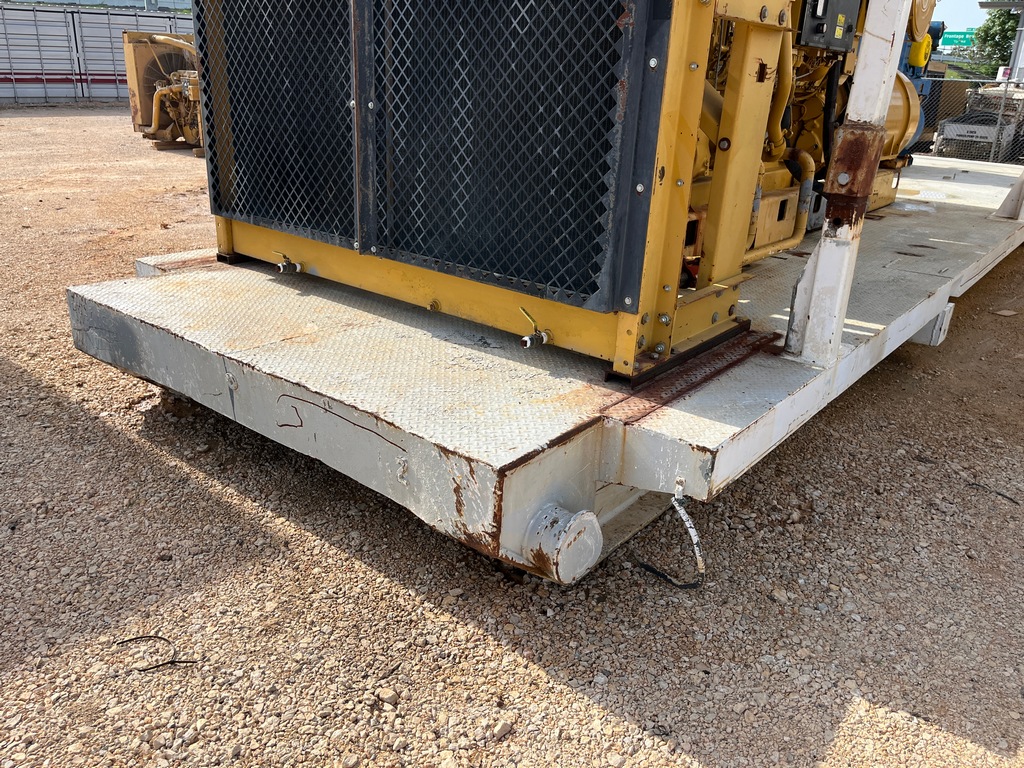

Oilfield Skid w. Roof

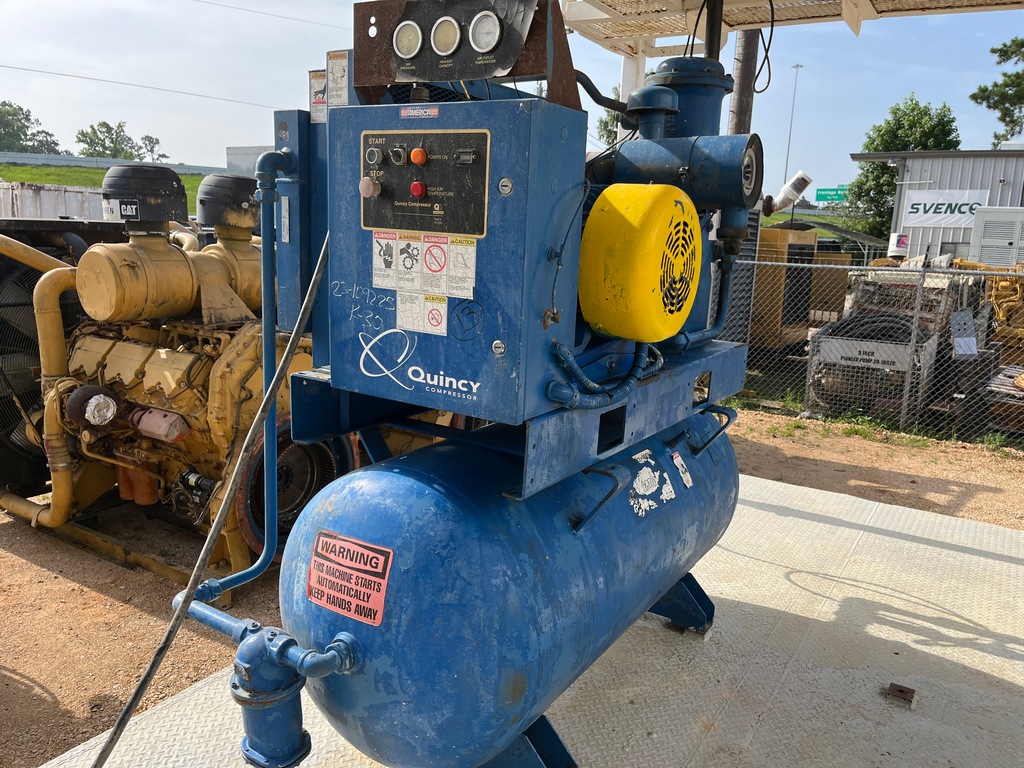

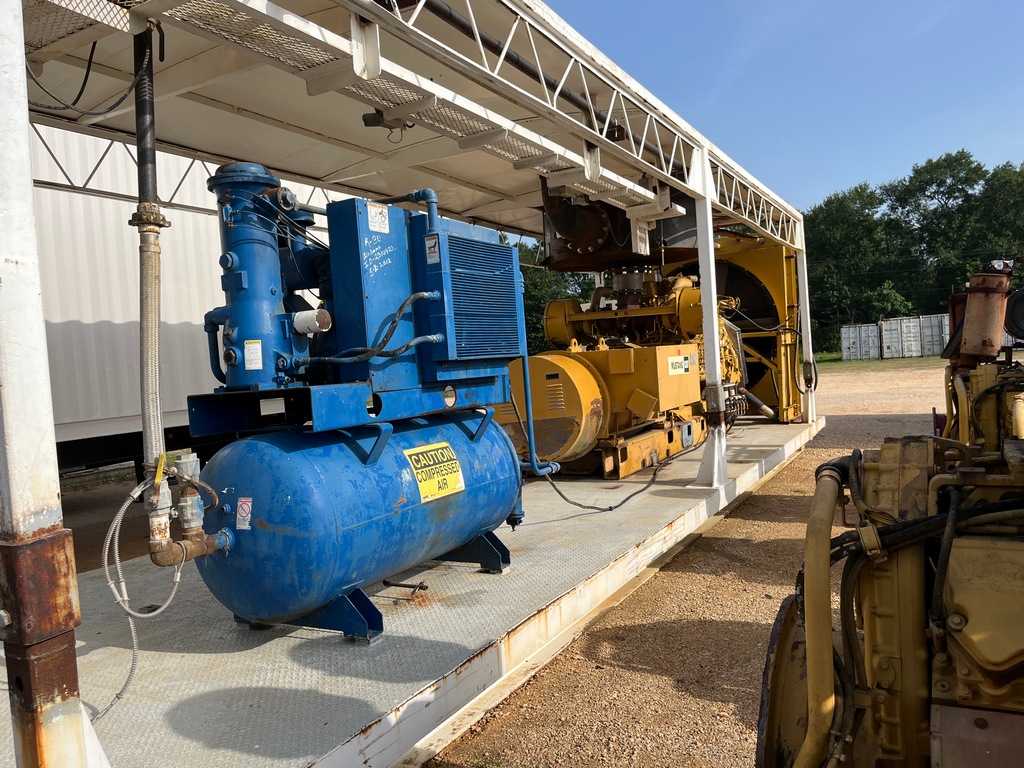

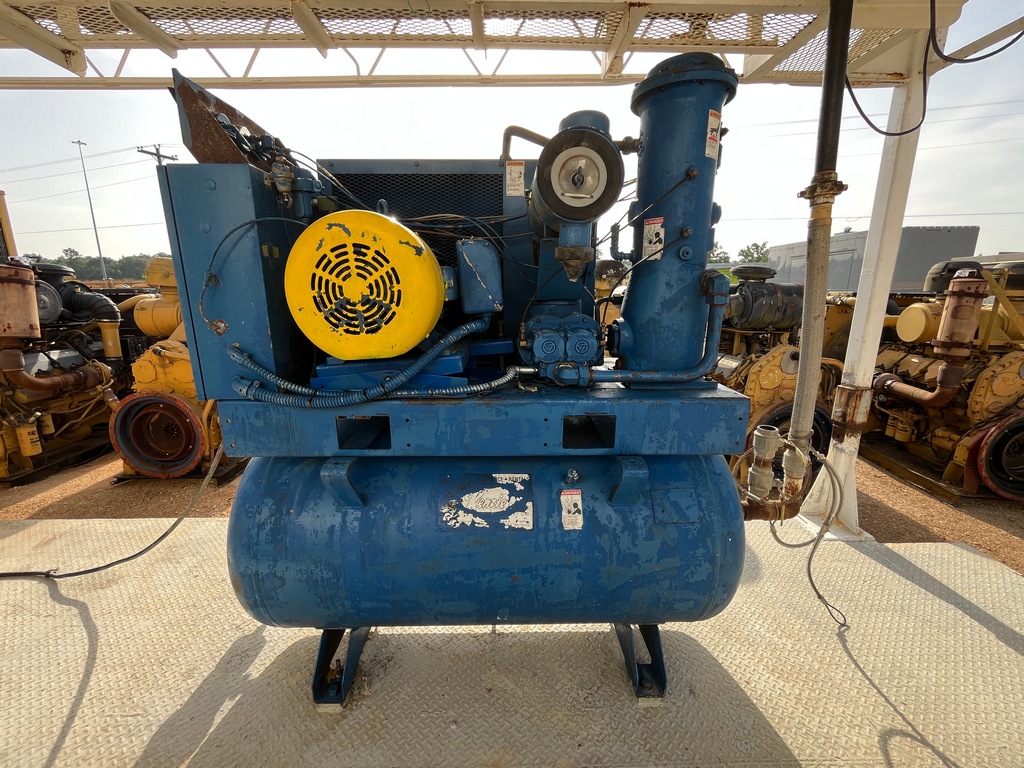

Mounted Air Compressor
Unit to be Serviced, Load Tested, & Painted
