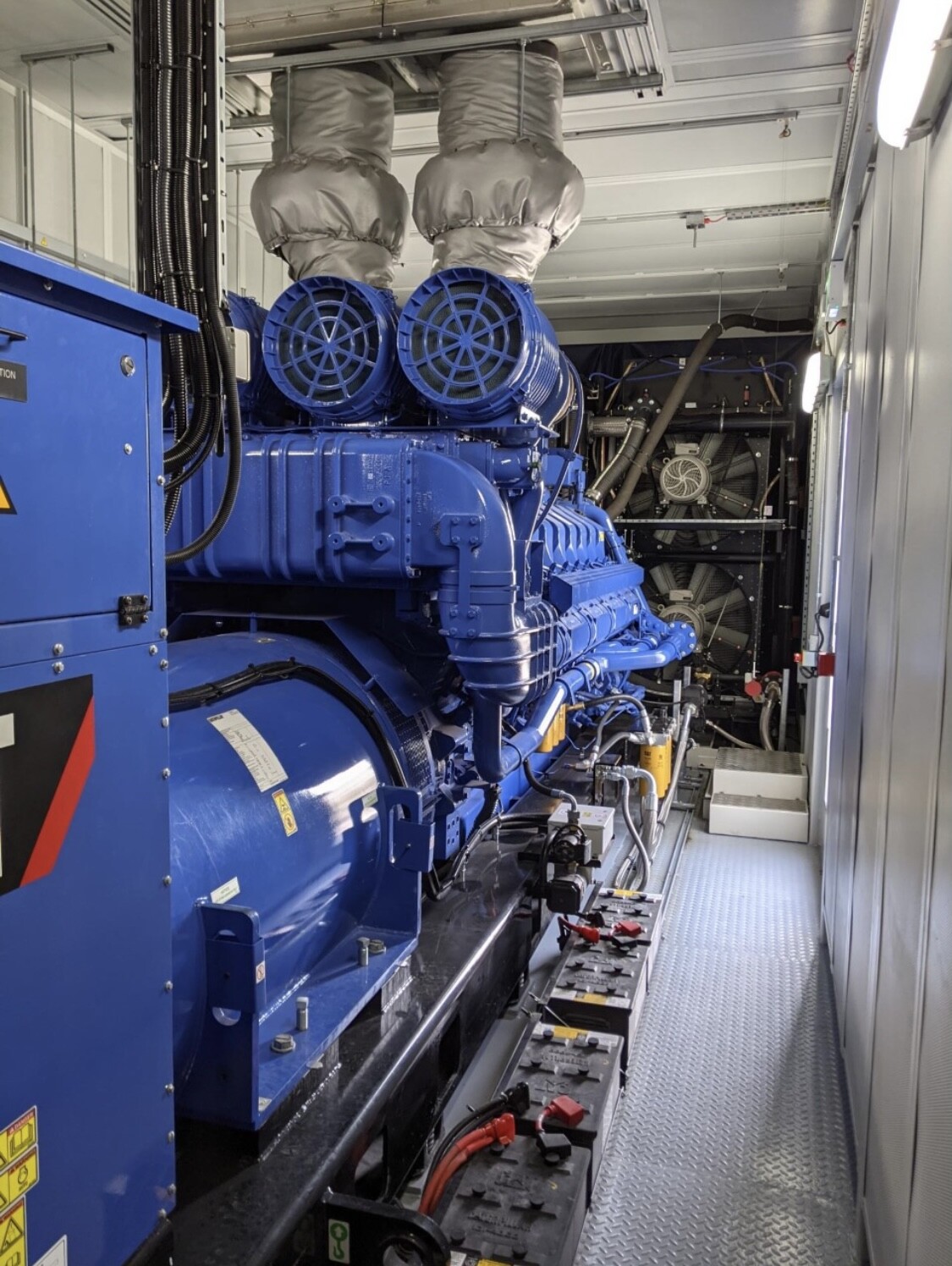

Like New CAT C175-16 Generator Set (50Hz)
- Stock Id:1278
- Condition:Good Used
- Year:2016
- Hours:200
- Rating(kW):2400 kW
- Voltage:400
- Status:Available
- Price: Call for Pricing
Description
Very Low Hour CAT C175-16 3000kVA Generator Set; Sound Enclosure; Immaculate Condition; 3000kVA Standby Rated; 50Hz; 400V; EMCP 4.2 Control Panel; 5000A Breaker; Six Units In Stock – Immediately Available
Specifications
Generator Set:
- Manufacturer : Caterpillar
- Package Model : C175-16
- Package S/N : WYB02084

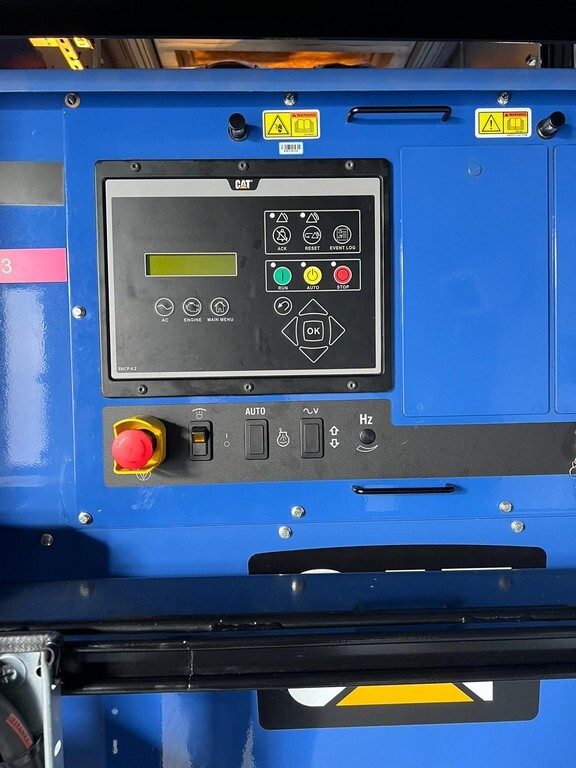

- Control Panel : EMCP 4.2

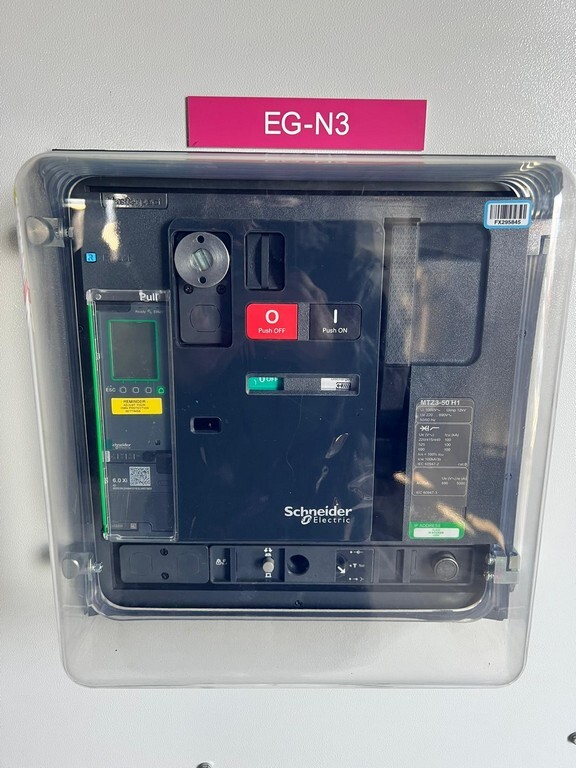

- Circuit Breaker Size : 5000

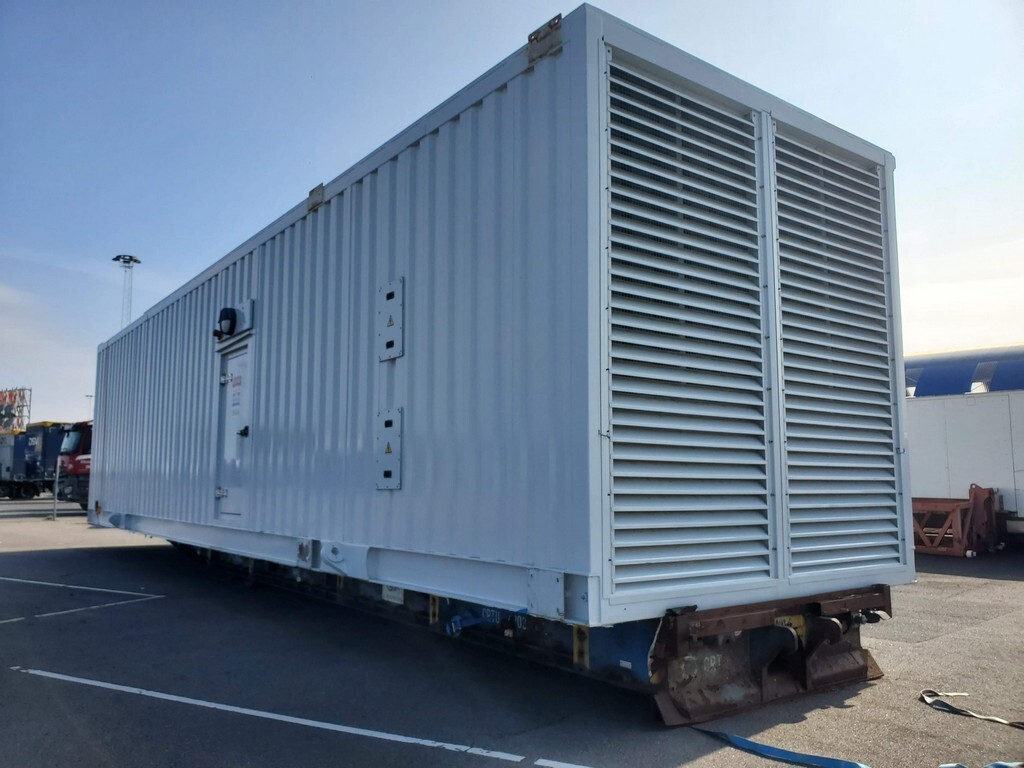

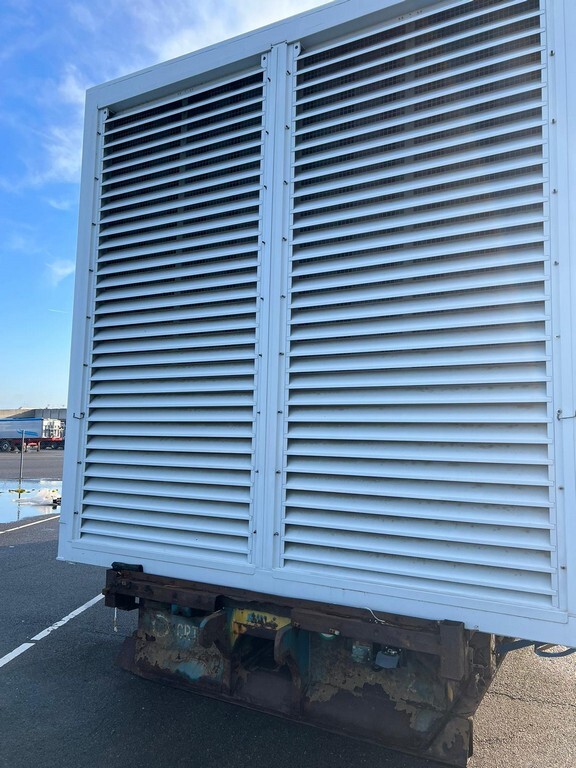

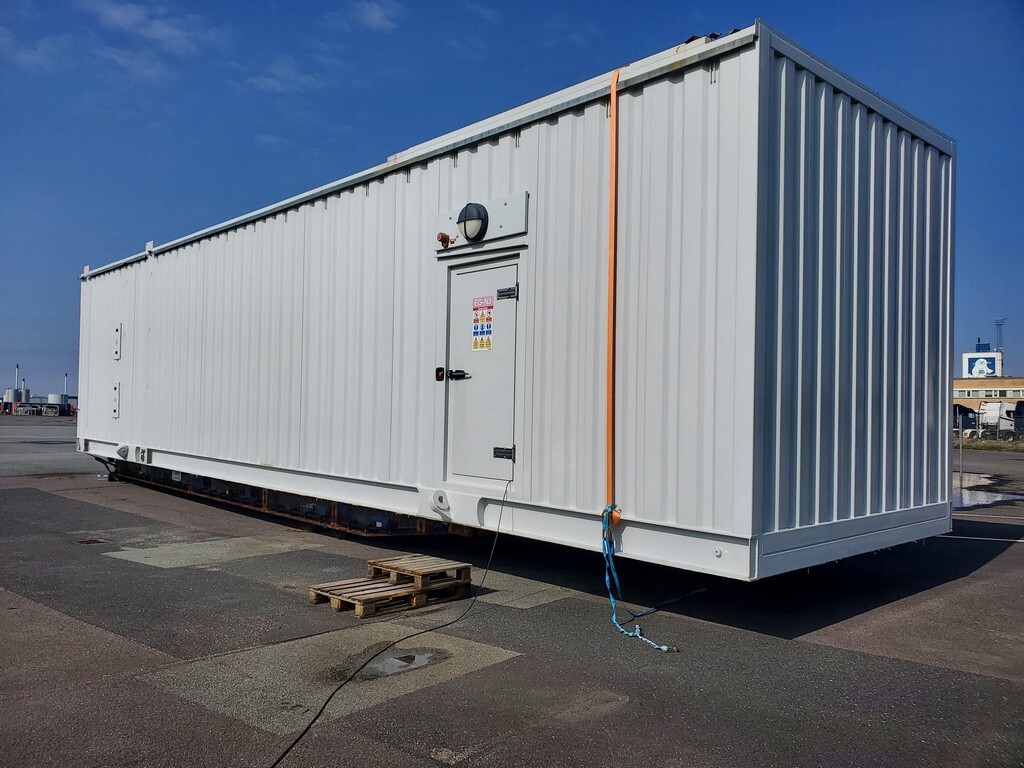

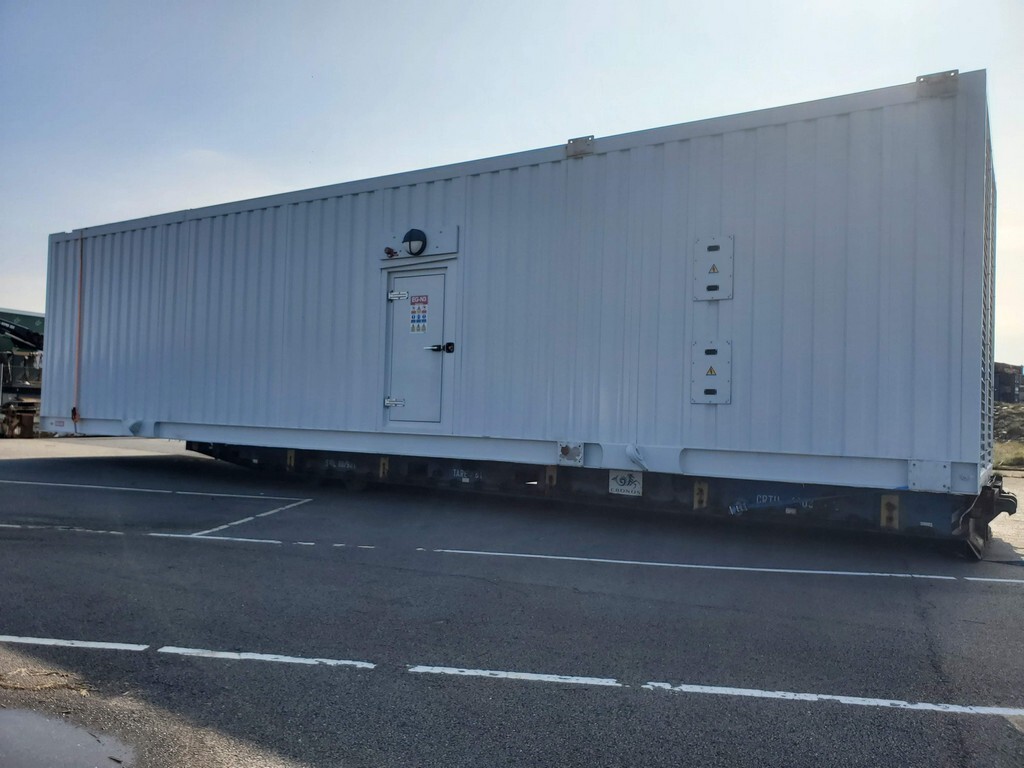

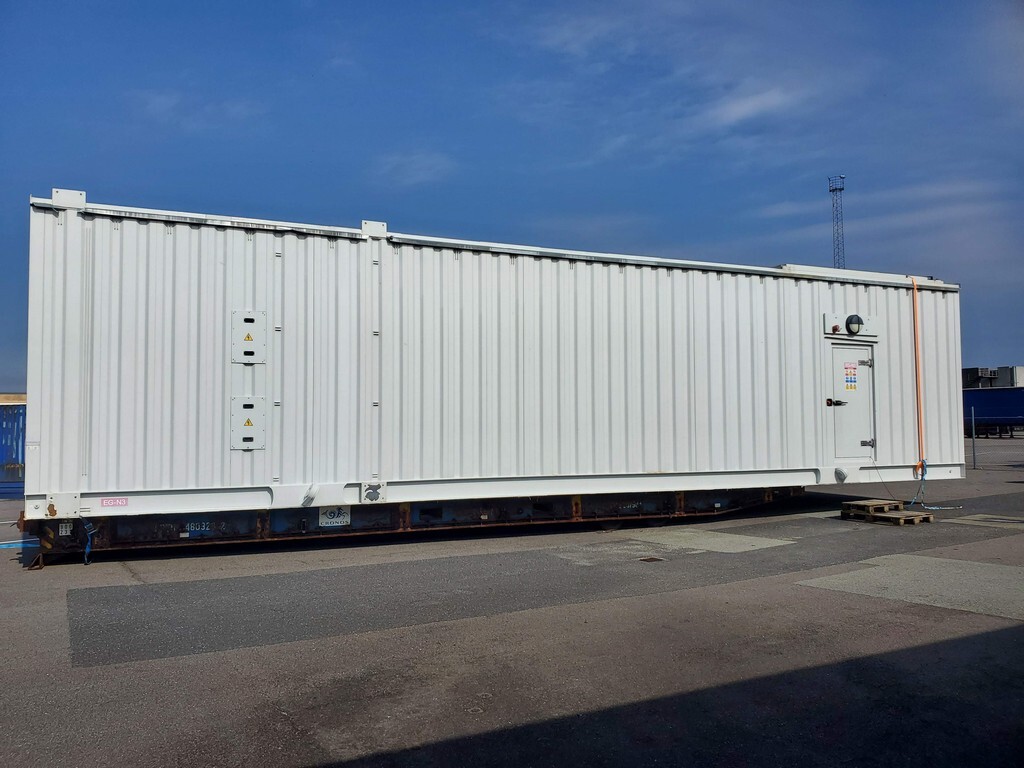

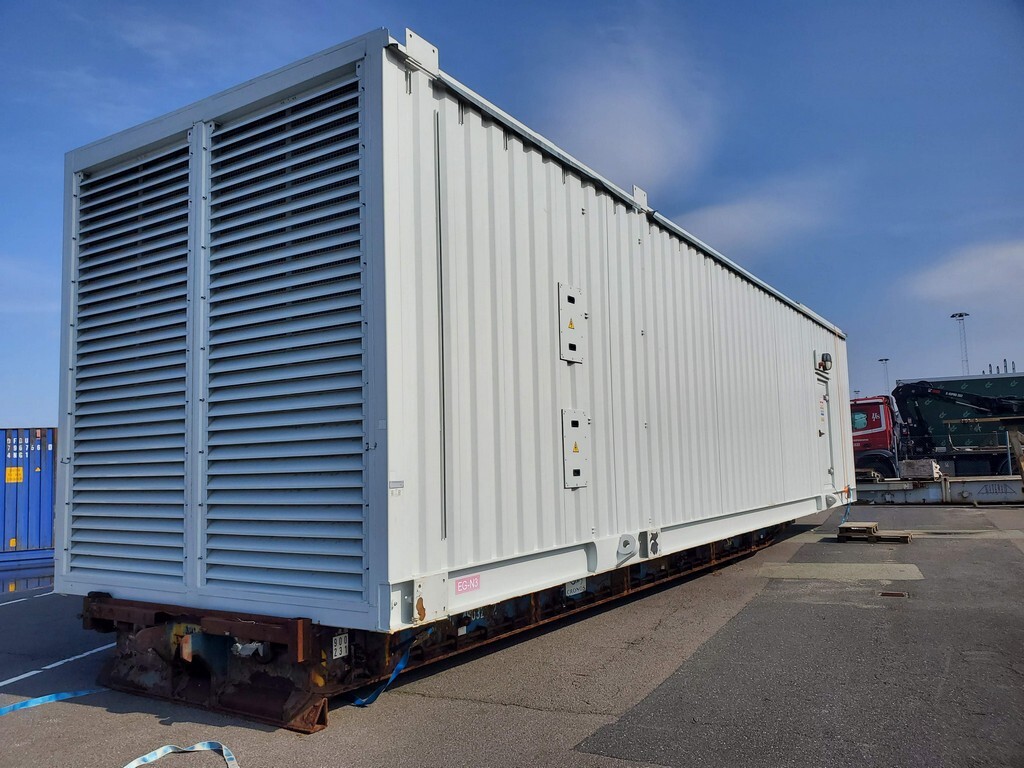

- Enclosure Type : Sound Attenuated Enclosure
Features:
- Electrically Operated Breaker
- Shunt Trip
Engine:
- Manufacturer : Caterpillar
- Model : C175-16

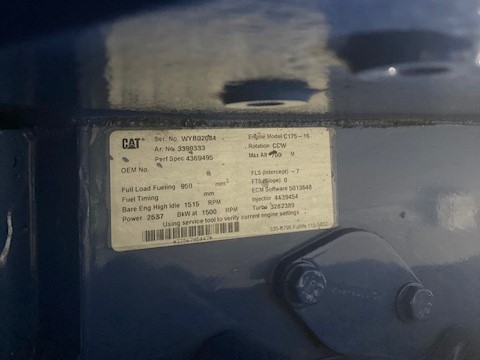

- Serial Number : WYB02084
- Arrangement/CPL : 3390333
- Rating (HP) : 3536 HP
- RPM : 1500
- Governor Type : ADEM
- Starter : Electric

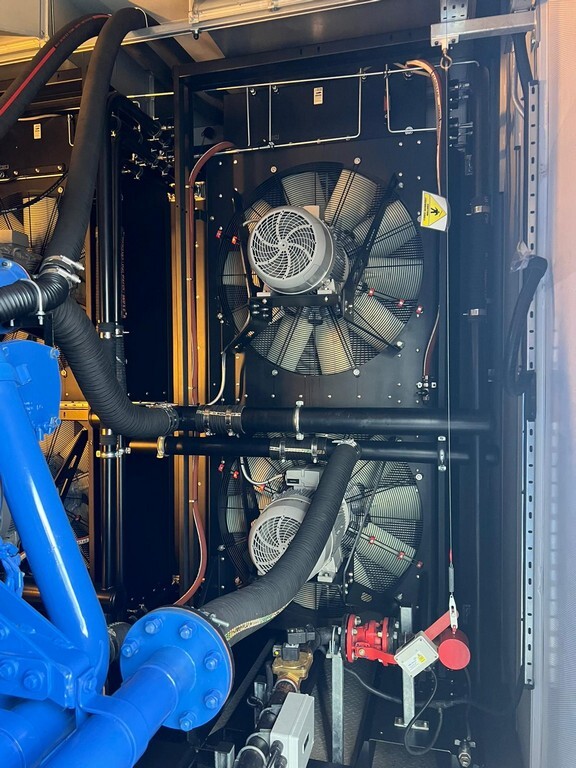

- Cooling Method : Remote Radiator
- Air Cleaner : Heavy Duty
Features:
- Jacket Water Heater

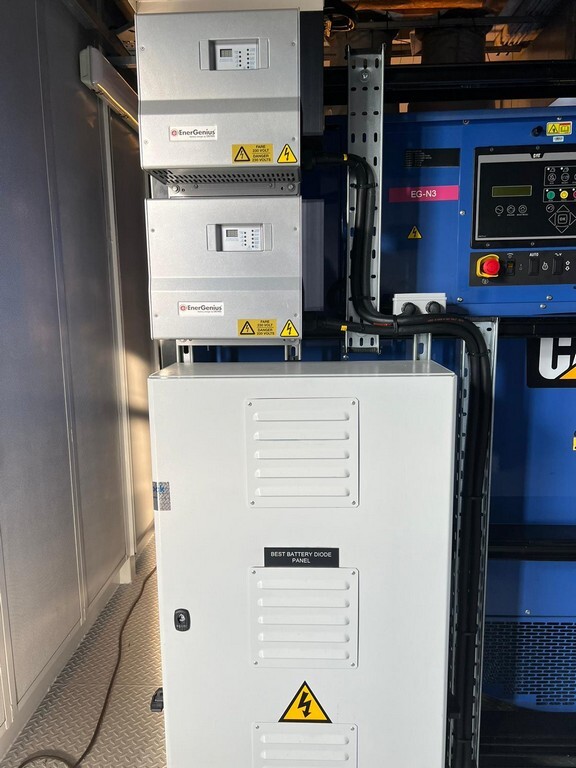

- Battery Charger
- Charging Alternator

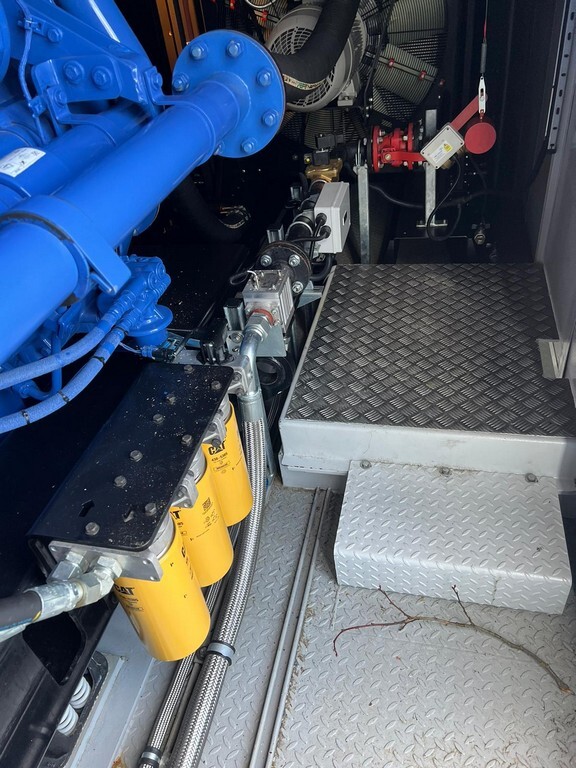

- Fuel Water Separator
- Fuel Cooler
- Battery Rack
- Battery Cables
- Emergency Stop
- Coolant Level Sensor
- Exhaust Silencer - Mounted
Generator End:
- Manufacturer : Caterpillar
- Package Model : SR5 1868 Frame
- Serial Number : G7J00801
- Arrangement : 3723068
- kW Rating : 2400 kW
- kVA Rating : 3000
- Rating Type : Standby
- Voltage : 400
- Power Factor : 0.8
- Frequency : 50 Hz
- Phase : Three Phase
- Leads :6
Features:
- Double Bearing
- Permanent Magnet Excitation
- Form Wound
- Bearing Temp RTDs
- Space Heater
- Flex Coupling
Additional Information
Very Low Hour
Maintained by Local CAT Dealer
Removed from Data Center Operation
Detailed Specifications Available
Fuel Tank Not Included
Exhaust Muffler Not Included
Air Intake Tower Not Included
Shipping Information
L x W x H (Inches) : 630 x 151 x 150
Weight (Lbs) : 121500
