Like New CAT C175-16 Generator Set (50Hz)

  • Stock Id:1272
  • Condition:Good Used
  • Year:2016
  • Hours:200
  • Rating(kW):2400 kW
  • Voltage:400
  • Status:Available
  • Price: $595,000

Description

Very Low Hour CAT C175-16 3000kVA Generator Set; Sound Enclosure; Immaculate Condition; 3000kVA Standby Rated; 50Hz; 400V; EMCP 4.2 Control Panel; 5000A Breaker; Six Units In Stock – Immediately Available

Why is a CAT C175-16 Generator Set a good option for datacenter power?

The CAT C175-16 Generator Set (50Hz) is a strong choice for data centers because it combines power, reliability, and efficiency. It provides up to 3.15 MW of power, making it ideal for large data centers that need consistent and high-capacity energy. The generator is built for both continuous and standby applications, ensuring it can handle the demands of critical operations without fail.

Its fuel efficiency helps reduce operating costs while meeting Tier 2 emissions standards ensures it complies with environmental regulations. With advanced control systems, the generator offers real-time monitoring and remote management, making it easy to track performance and manage power use. It also supports configurations like N+1 or 2N for redundancy, ensuring reliability during outages.

The CAT C175-16 is quick to respond to power demands, ensuring smooth operation even during sudden load shifts. Supported by Caterpillar’s strong global network, it is a reliable, scalable, and cost-effective solution for keeping your data center running smoothly.

Specifications

generator set icon

Generator Set:

  • Manufacturer : Caterpillar
  • Package Model : C175-16

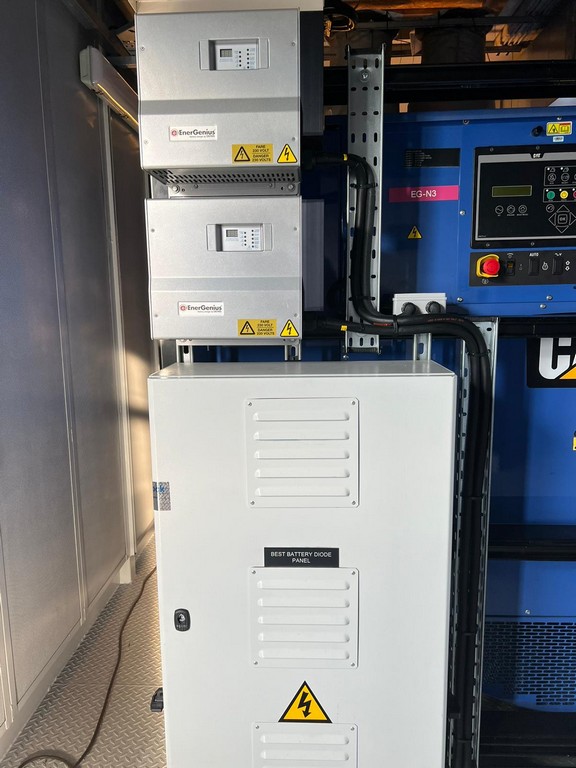

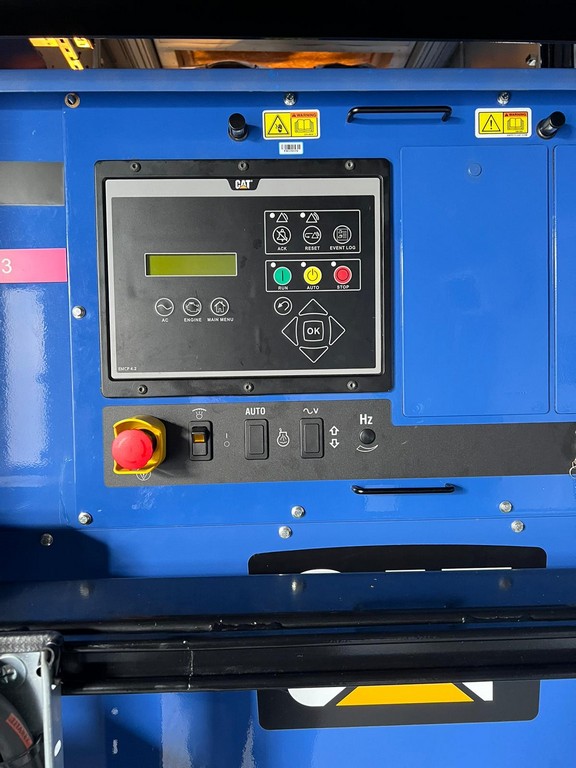

  • Control Panel : EMCP 4.2

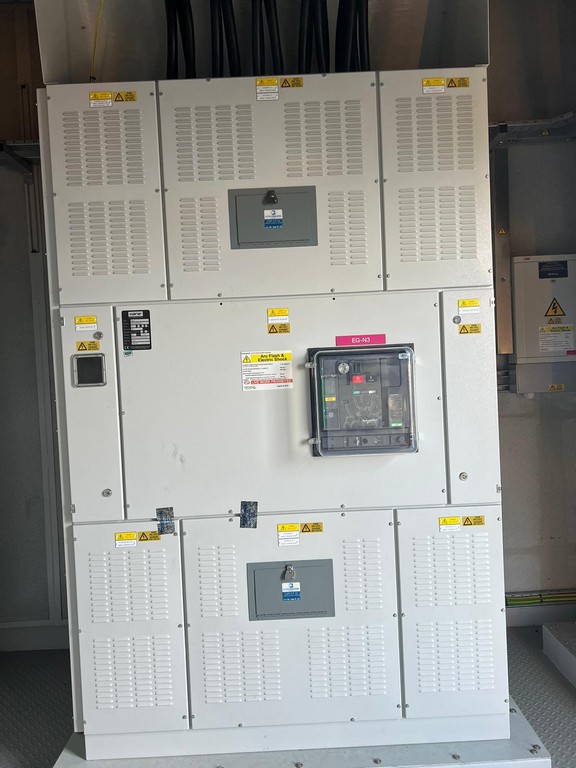

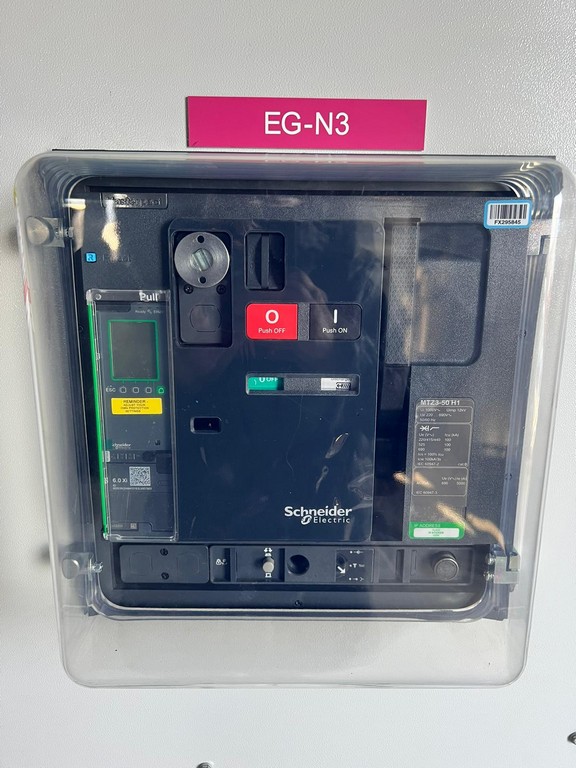

  • Circuit Breaker Size : 5000

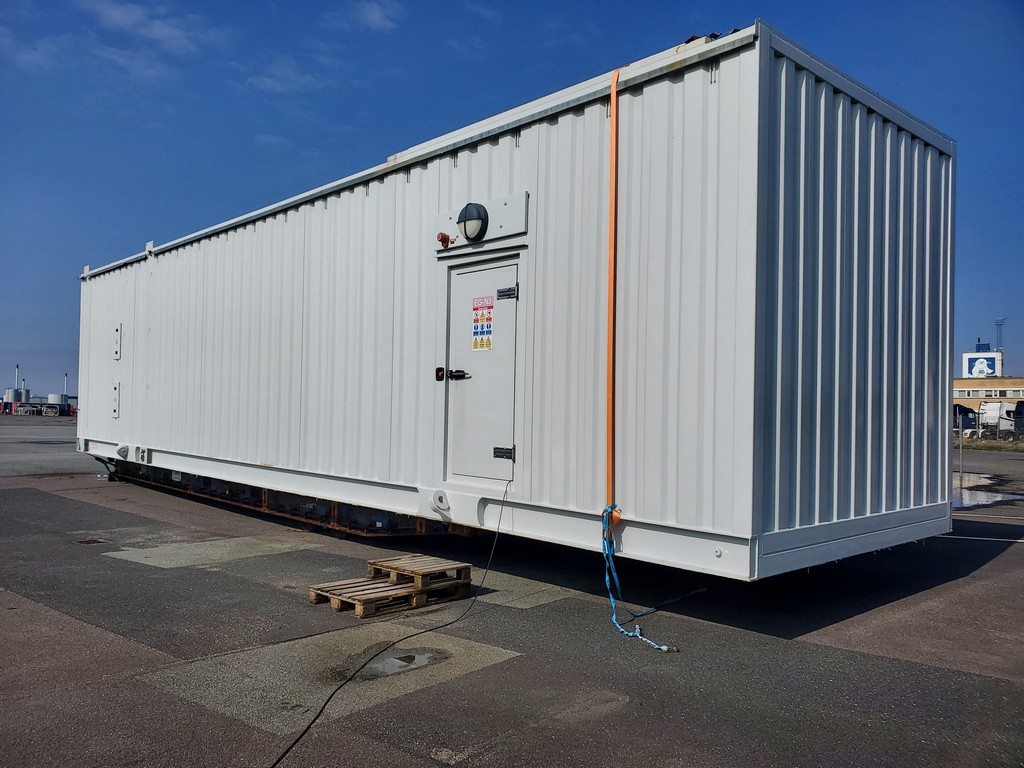

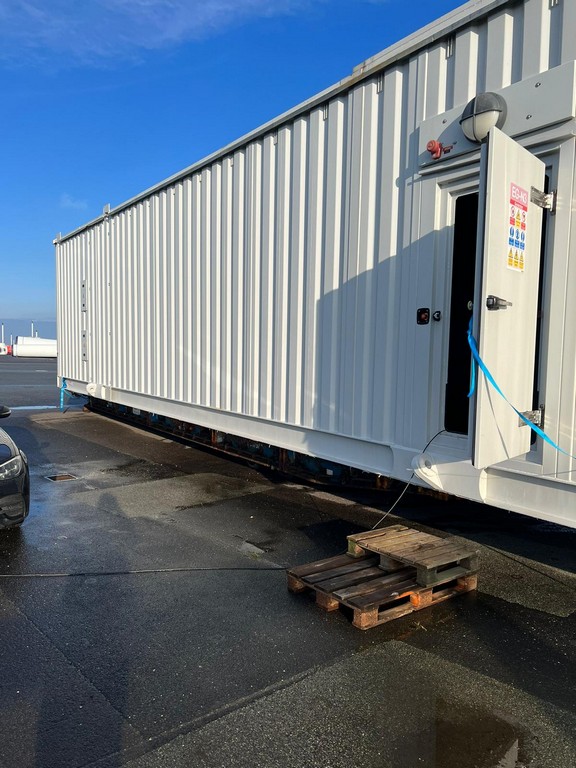

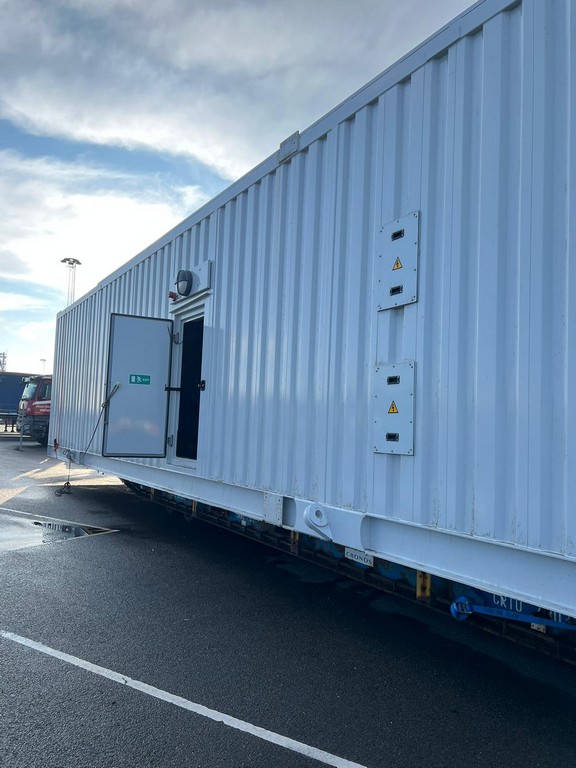

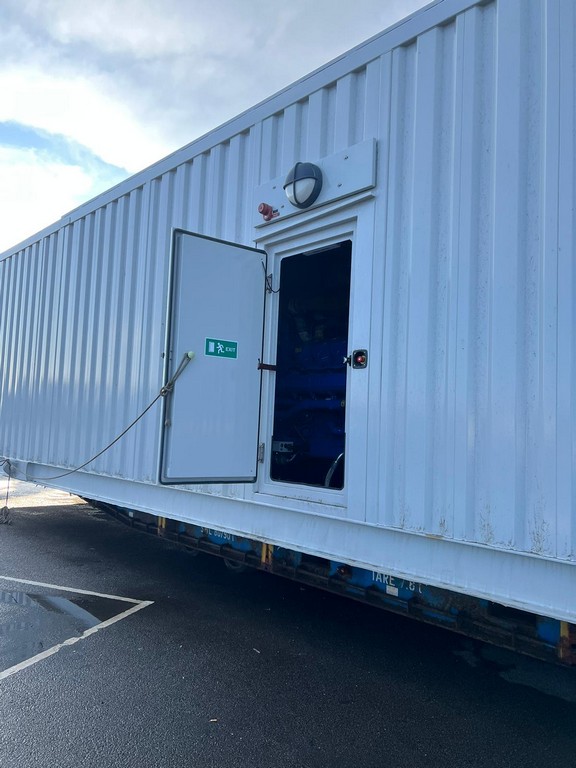

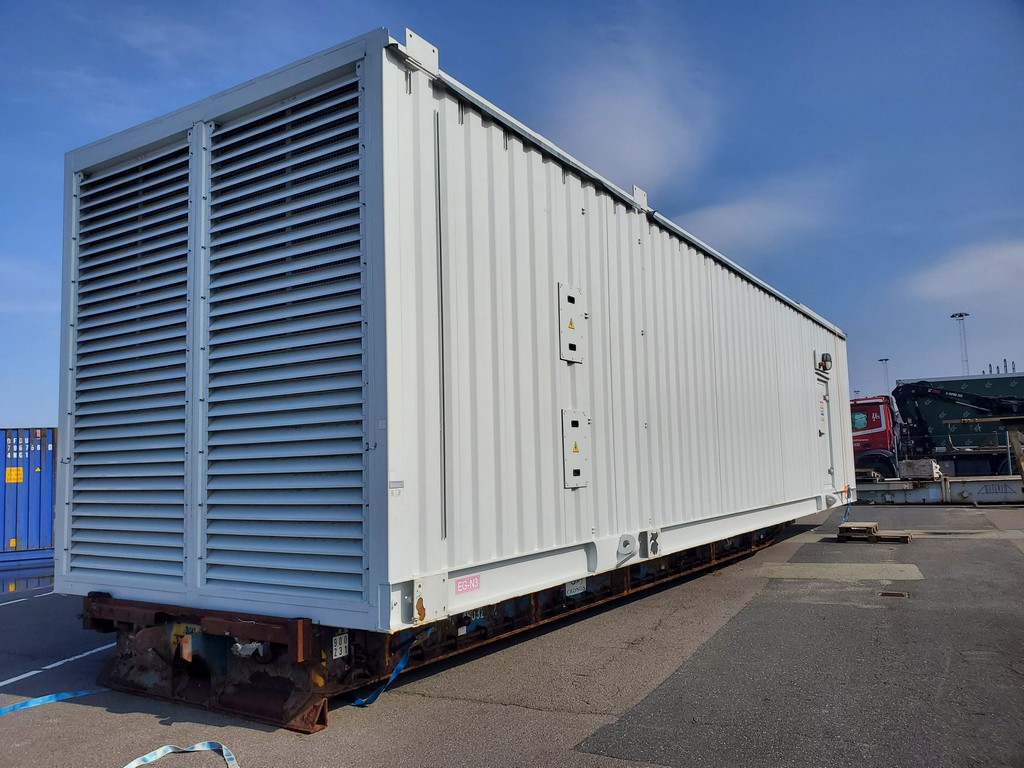

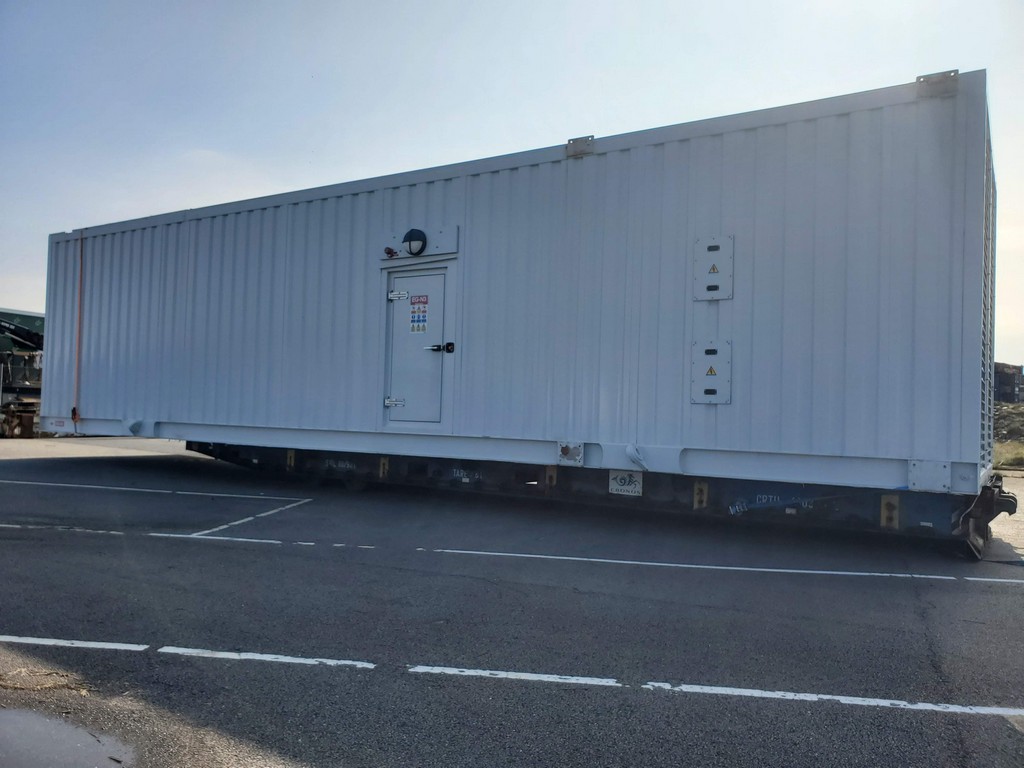

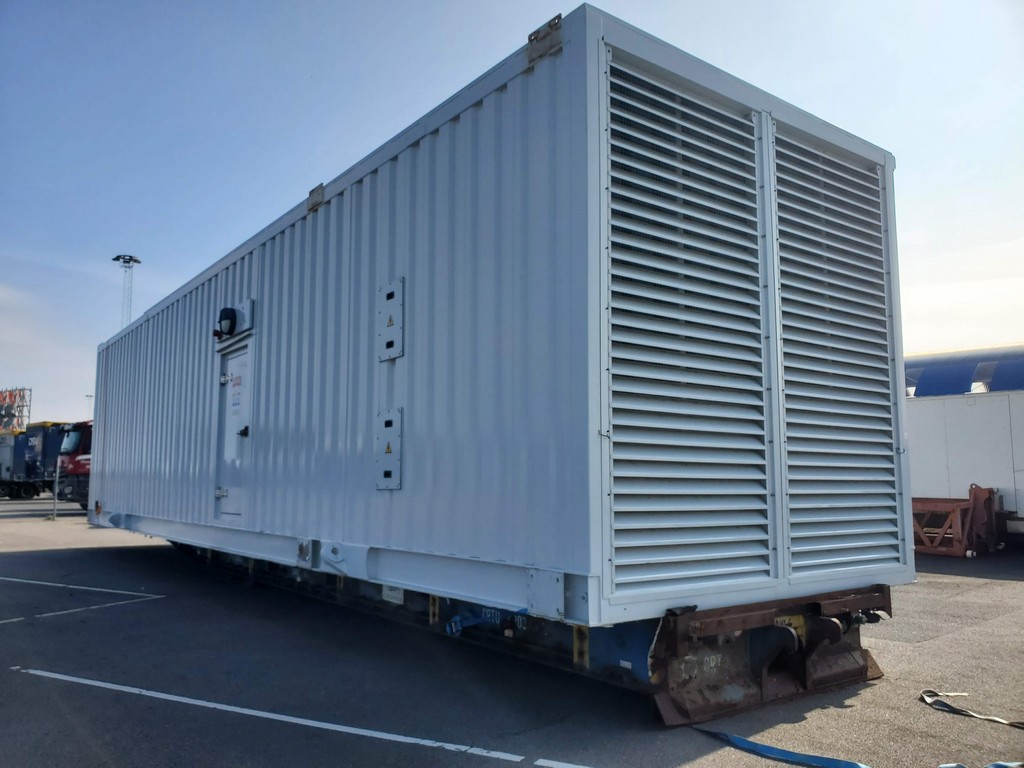

  • Enclosure Type : Sound Attenuated Enclosure
features icon

Features:

  • Electrically Operated Breaker
  • Shunt Trip

engine icon

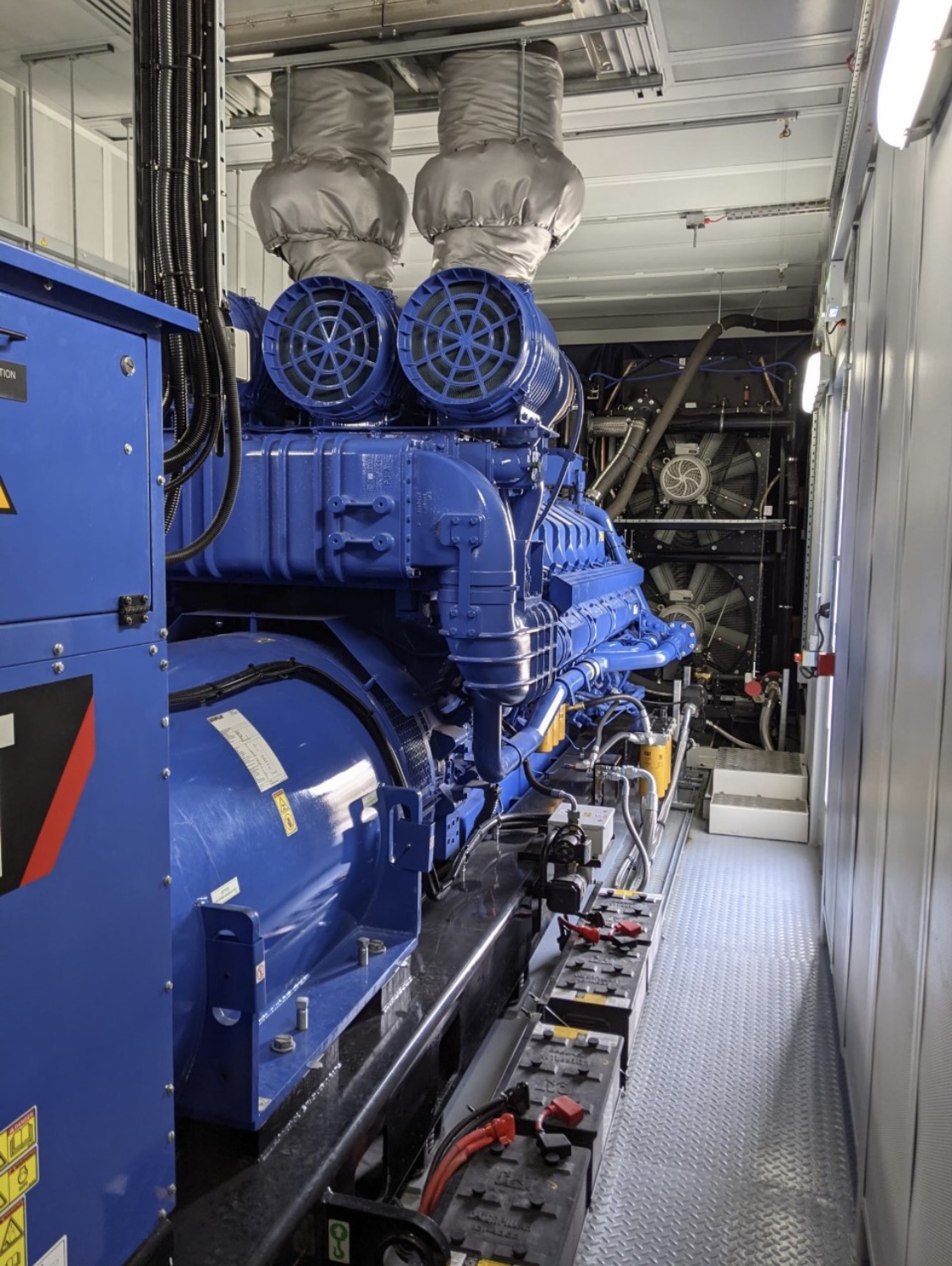

Engine:

  • Manufacturer : Caterpillar
  • Model : C175-16

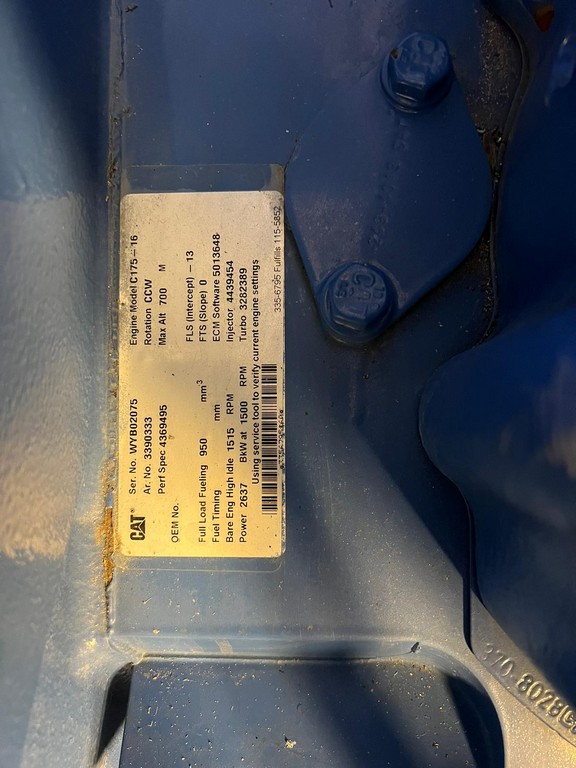

  • Serial Number : WYB Prefix
  • Arrangement/CPL : 3390333
  • Rating (HP) : 3536 HP
  • RPM : 1500
  • Governor Type : ADEM
  • Starter : Electric

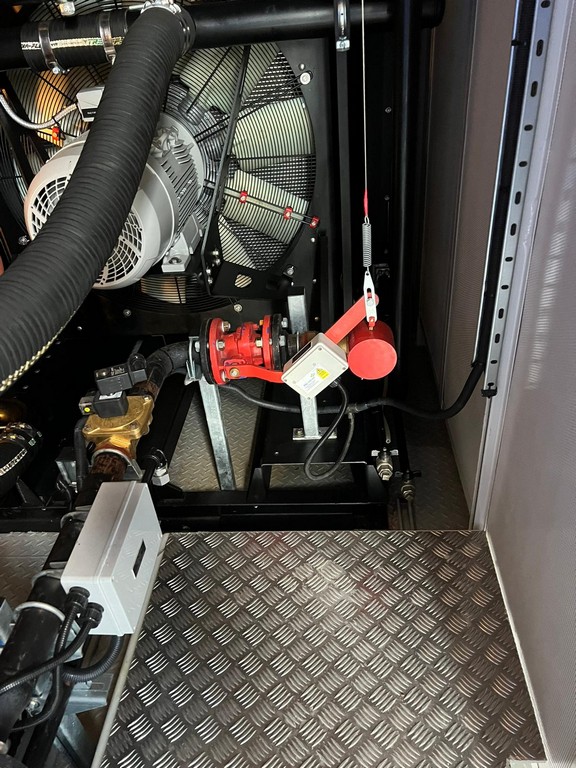

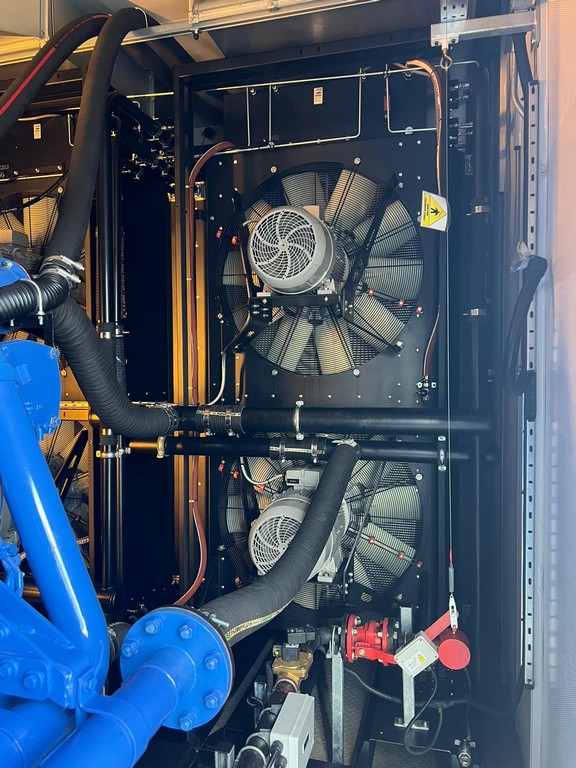

  • Cooling Method : Remote Radiator
  • Air Cleaner : Heavy Duty
features icon

Features:

  • Jacket Water Heater
  • Battery Charger
  • Charging Alternator

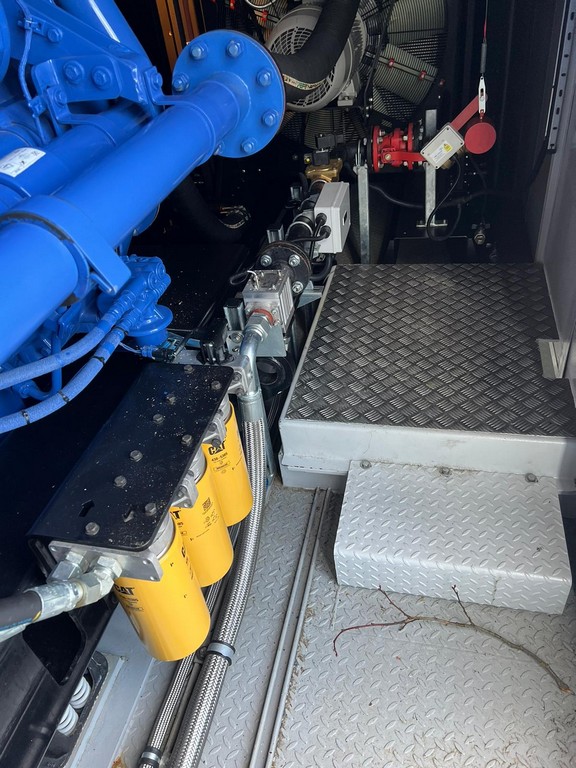

  • Fuel Water Separator
  • Fuel Cooler
  • Battery Rack
  • Battery Cables
  • Emergency Stop
  • Coolant Level Sensor

generator end icon

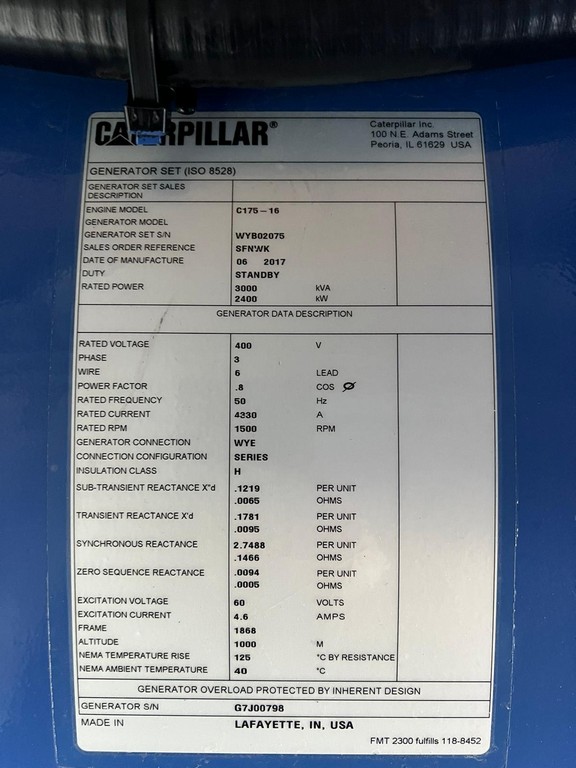

Generator End:

  • Manufacturer : Caterpillar
  • Package Model : SR5 1868 Frame
  • kW Rating : 2400 kW
  • kVA Rating : 3000
  • Rating Type : Standby
  • Voltage : 400
  • Power Factor : 0.8
  • Frequency : 50 Hz
  • Phase : Three Phase
  • Leads :6
features icon

Features:

  • Permanent Magnet Excitation
  • Form Wound
  • Bearing Temp RTDs
  • Space Heater
  • Flex Coupling

Additional Information

Very Low Hour
Maintained by Local CAT Dealer
Removed from Data Center Operation
Detailed Specifications Available
Fuel Tank Not Included
Exhaust Muffler Not Included
Air Intake Tower Not Included

Shipping Information

L x W x H (Inches) : 630 x 151 x 150
Weight (Lbs) : 121500
