Generators provide essential backup power for industrial, commercial, and emergency applications. Understanding the key parts of a generator helps ensure proper maintenance, efficiency, and reliability. Whether you operate a data center, manufacturing plant, or healthcare facility, knowing how each part functions allows you to make informed decisions about your power system.
At NineX Power Systems, we supply high-performance Diesel and Natural Gas generators designed for continuous, standby, and prime power applications. This guide explains the major parts of a generator and their roles in delivering dependable power. To learn more about how generators work, visit this article.

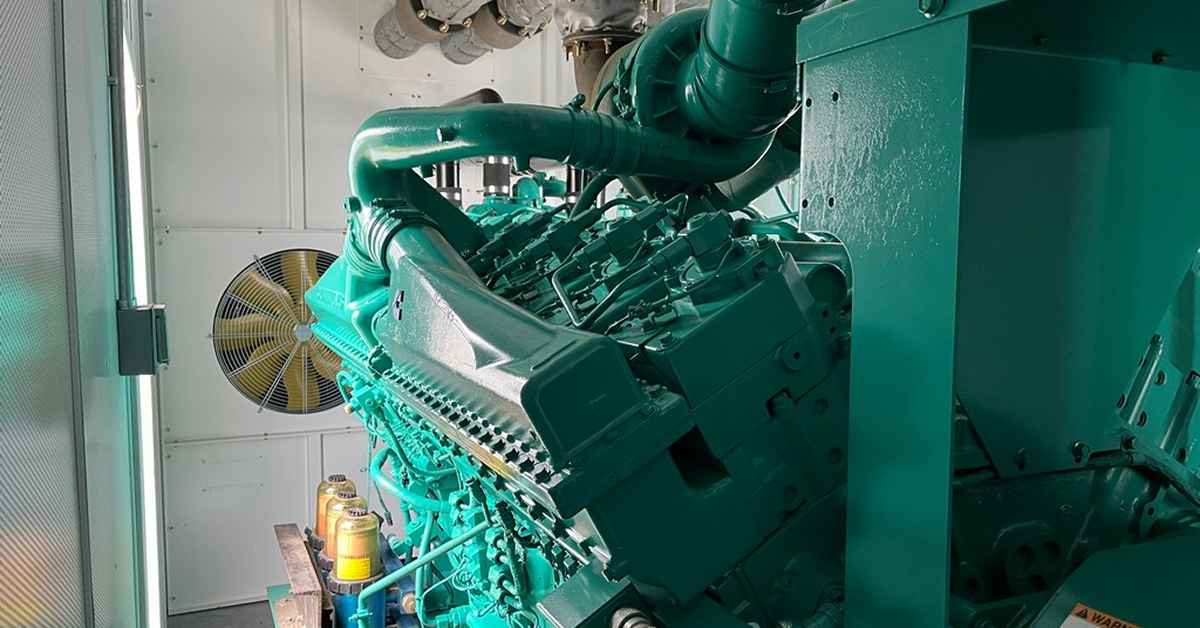

1. Engine
The engine is the heart of a generator. It converts mechanical energy into electricity by burning fuel, which powers the alternator to generate electrical energy. The size and capacity of the engine determine the generator’s total power generation capability.
Types of Generator Engines
- Diesel Engines – Preferred for their durability, fuel efficiency, and ability to handle heavy loads. Diesel engines also have a longer lifespan and require less frequent maintenance compared to gasoline engines.
- Natural Gas Engines – Cleaner-burning with a continuous fuel supply from utility pipelines. These engines are commonly used in urban areas where natural gas infrastructure is readily available, reducing the need for on-site fuel storage.
Learn more about the differences between Diesel and Gas Generators.
Key Factors to Consider
- Horsepower (HP): Higher horsepower means greater power output. The power requirement of the generator should match the demand of the connected load to prevent overloading or inefficiencies.
- Cooling System: Air-cooled engines are suitable for smaller units, while liquid-cooled systems are necessary for larger generators to manage heat dissipation efficiently.
- Fuel System Compatibility: Diesel vs. natural gas affects performance, emissions, and maintenance schedules. Choosing the right fuel type depends on availability, cost, and operational needs.
2. Alternator
The alternator, also called the generator head, is the component responsible for transforming mechanical energy from the engine into electrical energy. This conversion is crucial for ensuring a stable and reliable power supply. Without an efficient alternator, a generator cannot produce the electrical power needed for industrial, commercial, or emergency applications.
How the Alternator Works
The alternator operates based on electromagnetic induction, a process that generates electrical energy by moving a magnetic field through a stationary coil of conductors. When the generator engine runs, it spins the rotor inside the alternator, creating a rotating magnetic field. This movement induces an electric current in the stator windings, producing the generator’s alternating current (AC) output.
3. Fuel System
The fuel system is a critical part of a commercial generator. It supplies the fuel needed to convert chemical energy into mechanical energy, which is then converted into electricity.
For diesel generators, the fuel system starts with the fuel tank. These tanks can be either auxiliary or mounted directly on the generator, known as a diesel base tank. The size of the fuel tank determines how long the generator can run. Larger tanks allow the generator to operate longer without refueling.
Fuel tank capacity is typically calculated based on the generator’s size, power rating, and estimated fuel usage. For example, a 300 kW diesel generator with a 555-gallon tank will provide about 24 hours of operation.
The fuel is transported from the tank to the engine through pipes or fuel lines. These pipes may be above or below ground. The fuel system also includes pumps, which use electric motors to draw fuel from the tank and inject it into the engine’s cylinders.
Natural gas generators, on the other hand, are usually connected to the main gas utility. This provides a continuous fuel supply, as long as the utility is operational. Natural gas generators don’t need storage tanks since the fuel is supplied directly from the utility.
It’s important to note that diesel and natural gas generators use different fuel injection systems. These systems are designed for the specific fuel type and cannot be swapped.
Excess fuel that is not used in the engine is returned to the tank. However, this return fuel may be warmer than the stored fuel, which can reduce the engine’s horsepower. High temperatures can shut the system down, so many generators include fuel coolers to regulate fuel temperature.
Lastly, generator fuel systems often include control equipment to monitor pumps, storage tanks, fuel inventory, and detect leaks.
Key Components of the Fuel System
- Fuel Tank: Stores fuel for operation, with capacity impacting runtime. Larger fuel tanks allow extended operation times before refueling is required.
- Fuel Lines and Pumps: Transport fuel from the tank to the engine. High-quality fuel lines and pumps ensure consistent fuel delivery without leaks.
- Filters and Injectors: Ensure clean and efficient fuel delivery. Clogged fuel filters can reduce efficiency and cause engine failure, making regular maintenance crucial.
4. Voltage Regulator
Automatic voltage regulators (AVRs) are devices in generators that maintain consistent voltage levels. They stabilize the output voltage by preventing fluctuations and ensuring the alternating current stays within the correct voltage range.
AVRs are crucial for generators because they ensure the machine meets both commercial power demands and the specific power requirements of connected equipment. If a generator does not keep a steady voltage, it can harm its performance. It can also affect any equipment that uses it.
Each appliance or piece of machinery operates best within a specific voltage range. If the voltage is too high or too low, it can lead to performance issues or even damage. Generators without an AVR, or those with unregulated voltage, can cause these problems. When voltage fluctuates constantly, it shortens the lifespan of both the generator and the equipment.
Long-term exposure to improper voltage can reduce the efficiency of equipment or cause permanent damage. AVRs help prevent this by offering surge protection, guarding against electrical surges, spikes, and generator overloads.
Functions of the Voltage Regulator
- Monitors voltage levels and adjusts output as needed.
- Prevents overloads and electrical surges, protecting sensitive electronics.
- Ensures power stability for industrial and commercial applications.
5. Cooling System
Generators generate heat as they operate, and a cooling system is essential to regulate their temperature and prevent overheating. Most generators use either an air-cooled or liquid-cooled system to manage internal heat.
Air-cooled systems rely on air circulation to lower the generator’s temperature. Air is drawn in from the surroundings and blown across the generator’s components. One advantage of air-cooled systems is that they don’t require water pumps or connection hoses.
They also require less maintenance due to their simple design. However, air-cooled generators can overheat with prolonged use, leading to potential failure or lasting damage.
Liquid-cooled systems, on the other hand, use coolants or oil along with a radiator and water pump to manage heat. The pump circulates the cooling liquid through hoses to the engine, where it absorbs heat before returning to the radiator to cool down. While liquid-cooled systems are more effective for long-term use, they are more expensive to operate and require more maintenance due to their complexity.
Maintenance Tips
- Regularly check coolant levels to prevent overheating.
- Clean radiators and cooling fins to maintain airflow efficiency.
- Inspect hoses and connections for leaks.

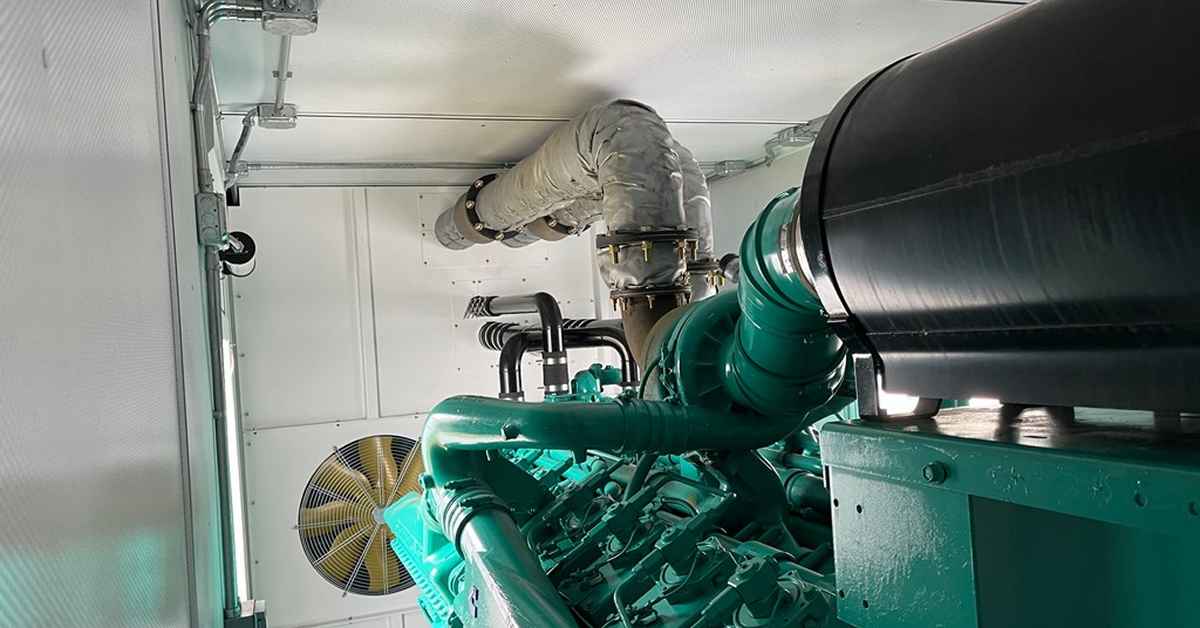

6. Exhaust System
Generators produce fumes containing harmful chemicals, making it essential to have a proper system for venting these fumes. The exhaust system should include a pipe that directs the fumes outside, away from entry points, doorways, and areas with heavy foot traffic.
Exhaust System Components
- Pipes: Channel exhaust away from the engine and building.
- Mufflers: Reduce noise pollution, making the generator quieter.
- Emission Controls: Ensure compliance with environmental regulations, reducing harmful pollutants.
7. Lubrication System
Generators contain numerous moving parts that create friction when they operate. Over time, this friction can cause mechanical wear, reduce efficiency, and lead to overheating or component failure. To prevent these issues, generators rely on a well-designed lubricating system that ensures smooth movement between internal components.
Lubricants, typically specialized oils, serve four key functions within the generator’s engine. First, they form a protective film between metal parts to prevent direct contact, reducing wear and extending the lifespan of critical components.
Second, they create a gas-tight seal between the piston rings and cylinder, helping to maintain compression and improve engine efficiency. Third, lubricants help dissipate heat generated by friction, keeping the engine from overheating.
Finally, they clean the engine’s internal surfaces by removing carbon deposits, metal debris, and other contaminants that could interfere with performance.
A generator’s lubrication system consists of oil reservoirs, pumps, filters, and distribution lines that deliver lubricant to high-friction areas. The oil pump ensures that lubricant circulates consistently, while oil filters remove contaminants before they can cause damage. Proper lubrication is essential for reliable generator operation, especially in high-demand environments such as data centers, hospitals, and industrial facilities.
8. Battery and Starting System
A generator’s battery system is one of its most critical components, ensuring the unit can start immediately when power is needed. During a power outage, there is no external energy source available to start the generator. That makes the battery the only power source capable of engaging the engine.
Even the most powerful generator cannot operate without a functional and fully charged battery. The battery supplies power to the engine starter and the generator’s control panel. Some generators include a secondary backup battery to provide additional reliability in case the primary battery fails.
How the Battery and Starting System Work
When a power outage happens, the generator’s control system notices the problem. Then, it sends a signal to the starter motor. The battery provides an electrical charge to the starter, which then cranks the engine. Once the engine is running, the alternator recharges the battery to keep it at optimal levels.
A battery charger is often built into standby generators. This keeps the battery charged, even when the generator is not in use. This automatic recharging process is crucial for long-term reliability.

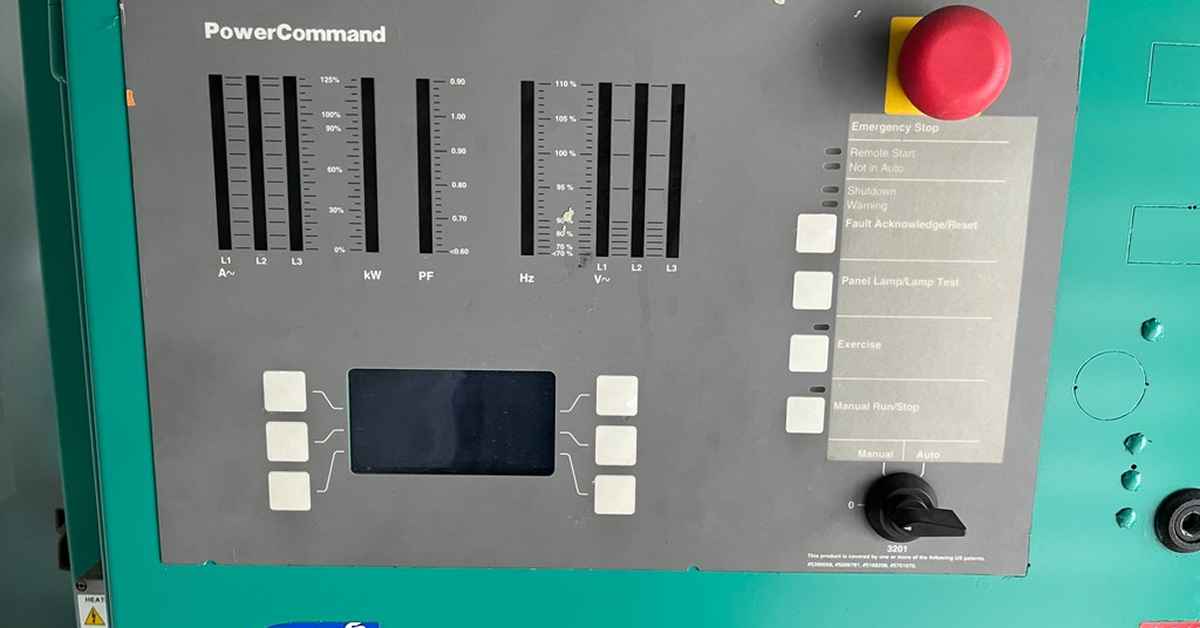

9. Control Panel
The control panel is the central hub for monitoring and managing a generator’s performance. It provides operators with real-time data on voltage, frequency, and engine status. The control panel serves as the interface between the user and the generator, ensuring seamless operation and safety.
How the Control Panel Works
A generator control panel consists of various components that allow for both manual and automatic control. The panel includes built-in displays, gauges, and meters that present critical parameters, such as current output, voltage regulation, and operational status. More advanced control panels integrate microprocessors that use sensor feedback to automate system adjustments and provide diagnostic information.
10. Frame and Enclosure
The main frame, or skid, is the base to which a generator and its components are mounted. In indoor generator rooms, the skid is often secured to the floor to keep the generator stable. It serves as the foundation for the generator set and provides flexibility beyond simply holding the generator’s parts.
Skid-mounted generators allow users to add enclosures for weatherproofing or sound attenuation. Enclosures are especially beneficial for outdoor installations, protecting the generator from the elements. For natural gas generators, the skid and enclosure are mounted on a concrete pad designed to support the generator’s weight. This pad is often poured with consideration for vibration isolator mounts, cable connections, and the weight of the generator.
Proper planning is crucial when installing generator frames to ensure the system functions correctly and meets regulations. It’s important to avoid installing the generator in spaces with insufficient room for maintenance or where the pad could become overloaded. Failure to meet these requirements could lead to legal issues, fines, or generator shutdowns.
Types of Enclosures
- Weatherproof Enclosures: Protect against rain, snow, and extreme temperatures.
- Sound-Attenuated Enclosures: Reduce noise levels for quieter operation.
- Skid-Mounted Generators: Offer mobility for temporary or remote applications.
Find the Right Fit With Our Team
Generators consist of multiple components that work together to provide reliable power. Knowing how generators work and how each part functions helps managers keep them well-maintained. This also maximizes efficiency and extends the equipment’s lifespan.
NineX Power Systems provides high-quality generators designed for continuous operation, standby applications, and emergency backup power. Contact us today to learn more about selecting the right generator for your business.
