Diesel and gas engines use turbochargers to increase power and efficiency. By forcing more air into the combustion chamber, a turbo charger allows an engine to burn more fuel. Then, it produces more power without increasing engine size.
Power generation, industrial machinery, and heavy-duty vehicles often use this technology to increase efficiency. Understanding how a turbocharger works can help users maintain and optimize engine performance.
What Is a Turbocharger?
A turbocharger is a forced induction device that increases Engine power by using exhaust gases to spin a turbine. This turbine drives a compressor that pushes more air into the engine, allowing for better combustion and improved performance.
Turbo vs. Naturally Aspirated Engine
- Naturally Aspirated Engine: Relies on atmospheric pressure to draw in air, limiting power output.
- Turbo Engine: Uses a turbine-driven compressor to push more air into the engine, increasing horsepower and fuel efficiency.
How a Turbo Works
A turbocharger consists of two main sections: the turbine and the compressor. These components work together to increase air intake and improve engine performance.
Step-by-Step Process:
- Exhaust Gas Collection – Hot exhaust gases exit the engine and enter the turbine housing.
- Turbine Rotation – The force of the exhaust gases spins the turbine wheel, which connects to a shaft.
- Compressor Activation – The spinning shaft turns the compressor wheel, drawing in and compressing fresh air.
- Increased Airflow to Engine – The compressed air enters the engine’s intake manifold, increasing the oxygen supply for combustion.
- Power Boost – With more air available, the engine burns more fuel, producing more power.
Key Components of a Turbocharger
1. Turbine
- Located on the exhaust side of the turbocharger.
- Converts exhaust gas energy into mechanical energy.
- Spins the compressor via a shared shaft.
2. Compressor
- Draws in ambient air and compresses it before sending it into the engine.
- Increases air density, allowing more oxygen for combustion.
3. Intercooler (Optional)
- Some turbochargers use an intercooler to cool the compressed air before it enters the engine.
- Cooler air is denser, improving combustion and reducing engine knock.
4. Wastegate
- Prevents excessive boost pressure by diverting extra exhaust gases away from the turbine.
- Protects the engine from damage due to over-boosting.
5. Bearings and Lubrication System
- Turbochargers operate at extremely high speeds (up to 200,000 RPM).
- Special oil-fed bearings reduce friction and prevent overheating.
Benefits of a Turbocharger
1. Increased Power Output
- More air means more fuel can be burned, increasing horsepower.
- A turbocharged engine can produce up to 40% more power than a naturally aspirated engine.
2. Improved Fuel Efficiency
- Smaller turbocharged engines can produce the same power as larger engines while using less fuel.
- More efficient combustion reduces fuel waste.
3. Better Performance at High Altitudes
- Naturally aspirated engines lose power at higher elevations due to lower air density.
- Turbochargers compensate by forcing more air into the engine, maintaining performance.
4. Reduced Emissions
- More efficient fuel combustion results in lower emissions.
- Modern turbochargers help meet strict environmental regulations.

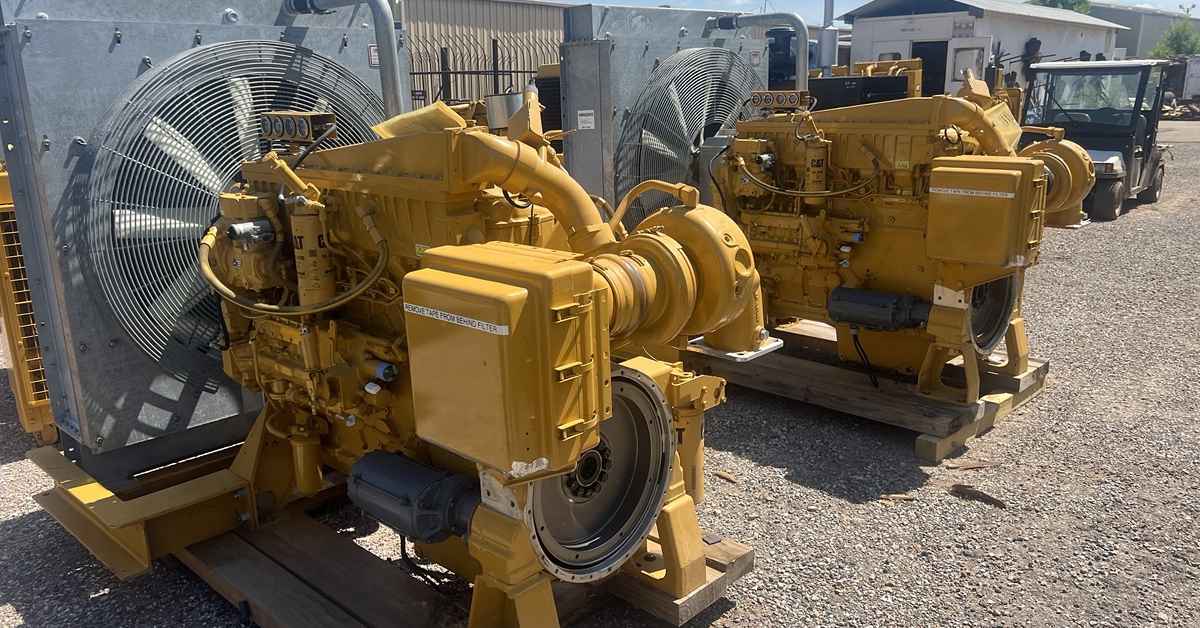

Turbochargers in Power Generation
Turbochargers are used in industrial diesel generators to improve power output and fuel efficiency. By compressing intake air, they help generators deliver consistent performance under heavy loads.
Turbo Chargers in Diesel Generators:
- Allow smaller engines to generate more power.
- Improve fuel economy in standby and prime power applications.
- Reduce emissions for compliance with environmental standards.
FAQ: Turbochargers Explained
How does a turbocharger increase power?
A turbocharger forces more air into the engine’s combustion chamber, burning more fuel. This results in increased power output without increasing engine size.
What is turbo lag?
Turbo lag is the delay between pressing the accelerator and the turbocharger delivering a power boost. It happens because the turbine takes a moment to spool up.
How much horsepower does a turbo add?
A turbo charger can increase horsepower by 30-40%, depending on engine size, turbo size, and tuning.
Do turbochargers improve fuel efficiency?
Yes. Turbocharged engines can produce more power with less fuel, making them more fuel-efficient than naturally aspirated engines of the same power level.
Do turbo chargers require more maintenance?
Turbochargers need regular maintenance, including oil changes and inspections, to ensure proper lubrication and cooling. Neglecting maintenance can lead to overheating and failure.
Can a turbocharger overheat?
Yes, a turbo operate at high temperatures and rely on engine oil for cooling. Low oil levels or poor-quality oil can cause overheating and damage.
What is a twin-turbo system?
A twin-turbo system uses two turbo chargers instead of one. This can help reduce turbo lag and improve efficiency by optimizing airflow across different RPM ranges.
What is a wastegate?
A wastegate is a valve that controls the flow of exhaust gases to the turbine. It prevents excessive boost pressure, protecting the engine from damage.
Can I add a turbocharger to a non-turbo engine?
Yes, but it requires extensive modifications, including stronger pistons, upgraded fuel injectors, and tuning adjustments to handle the extra power.
What is an intercooler, and do all turbos need one?
An intercooler cools the compressed air from the turbo before it enters the engine. While not all turbo chargers require an intercooler, it improves performance by increasing air density and reducing the risk of engine knock.
Need Turbo Power?
Turbochargers are a powerful way to boost engine performance, fuel efficiency, and emissions control. Whether in cars, trucks, or diesel generators, they enhance power output without increasing engine size. Proper maintenance ensures long-lasting performance.
